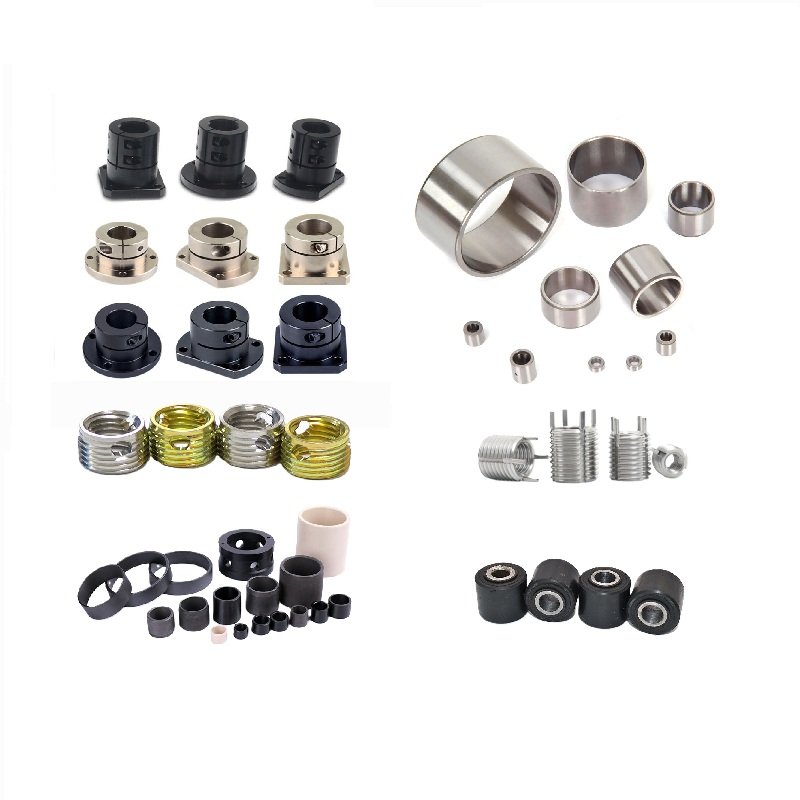

Custom Bushings Manufacturer and Supplier
Custom-only, engineering-led solutions for custom bushing machining, custom plastic bushings, and custom metal bushings.
Bushing Types

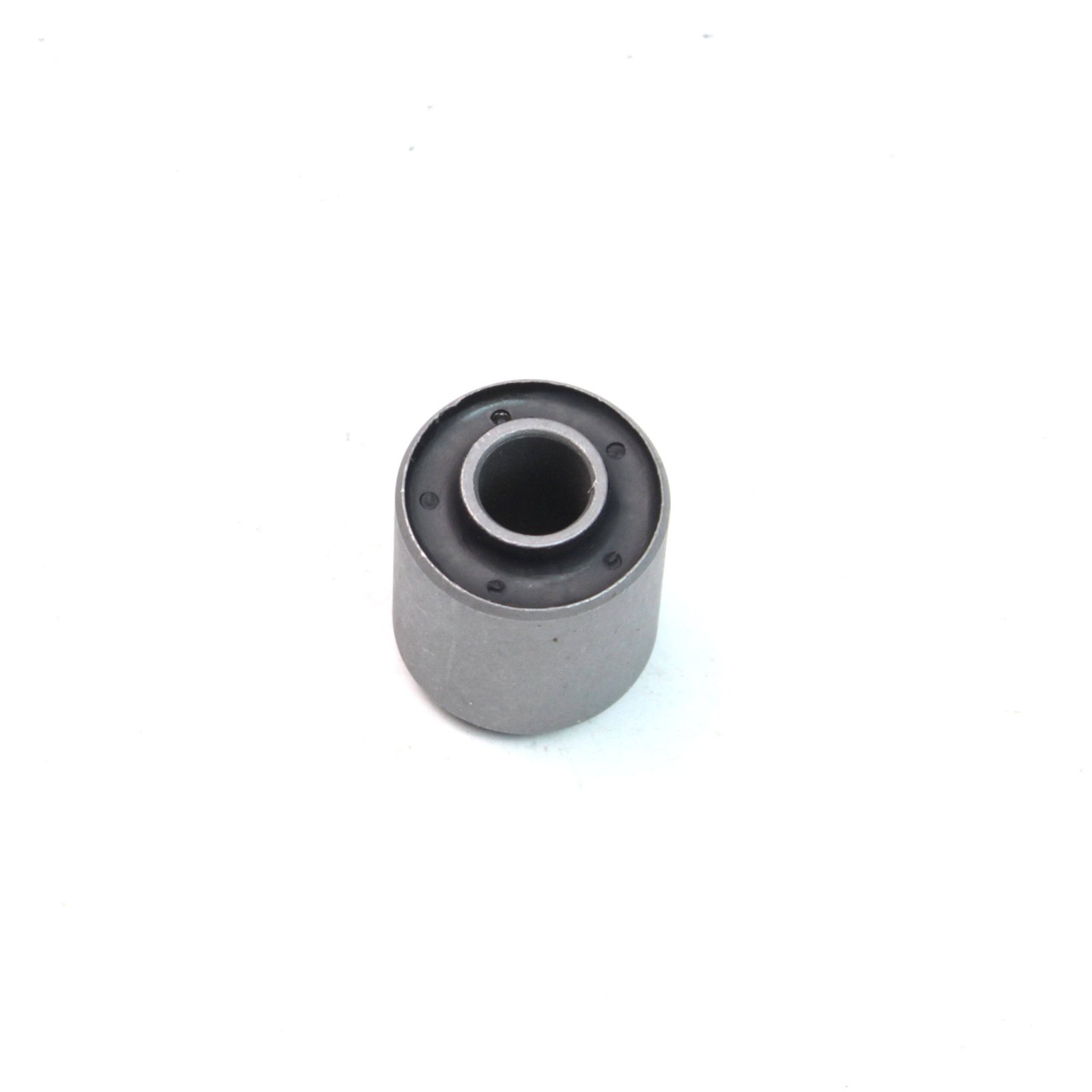

Shock Bushings
- High impact absorption
- Vibration dampening
- Automotive grade durability

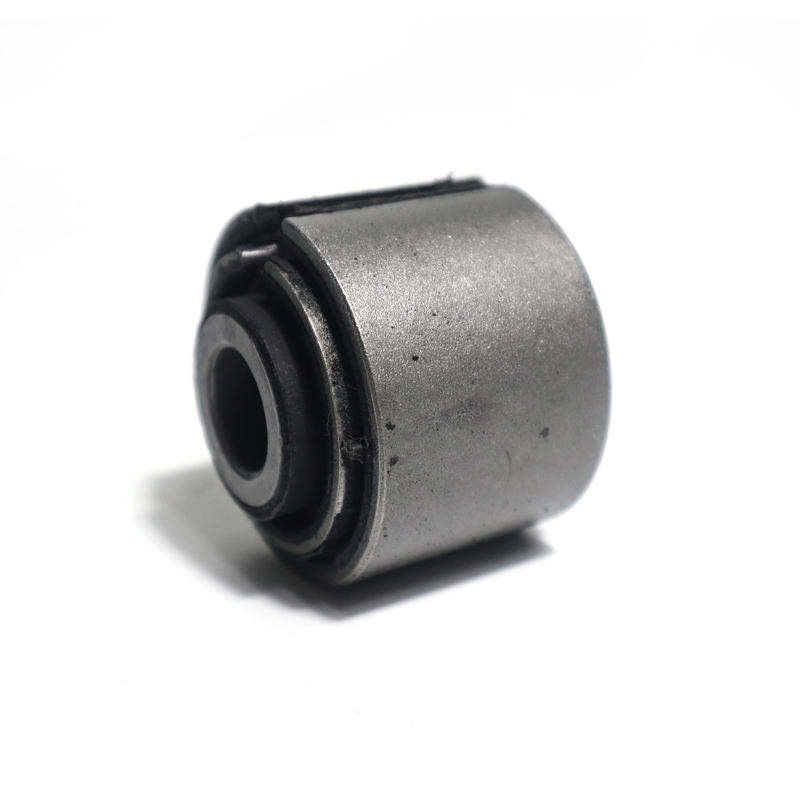

Stabilizer Bar Bushings
- Precise suspension fit
- Noise and harshness reduction
- Wear-resistant compounds

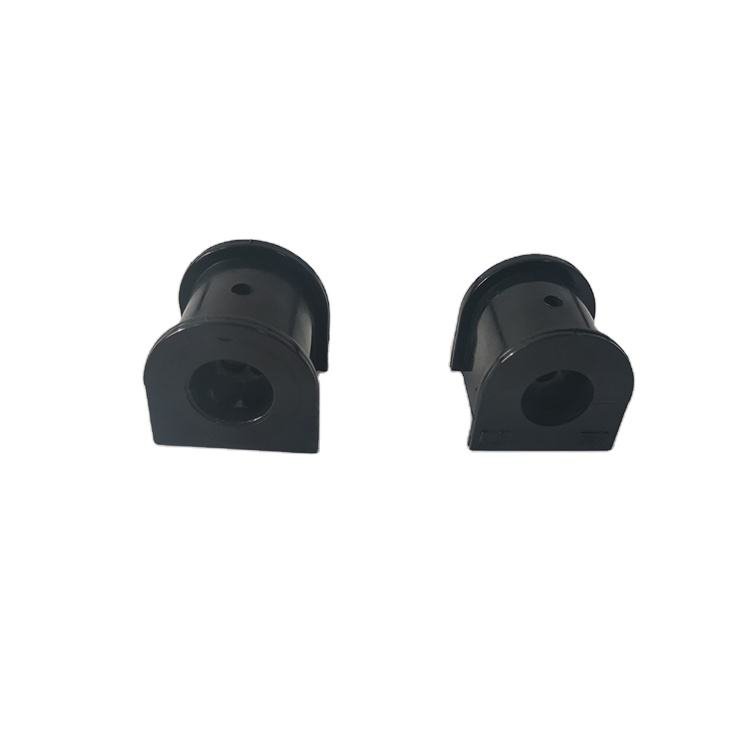

Sway Bar Bushings
- Optimized roll control
- Custom durometer options
- Long service life
Taper-lock Bushings
- High torque transmission
- Keyless shaft locking
- Easy installation and removal
Flanged Bushings
- Axial load support
- Precise positioning
- Thrust surface integration

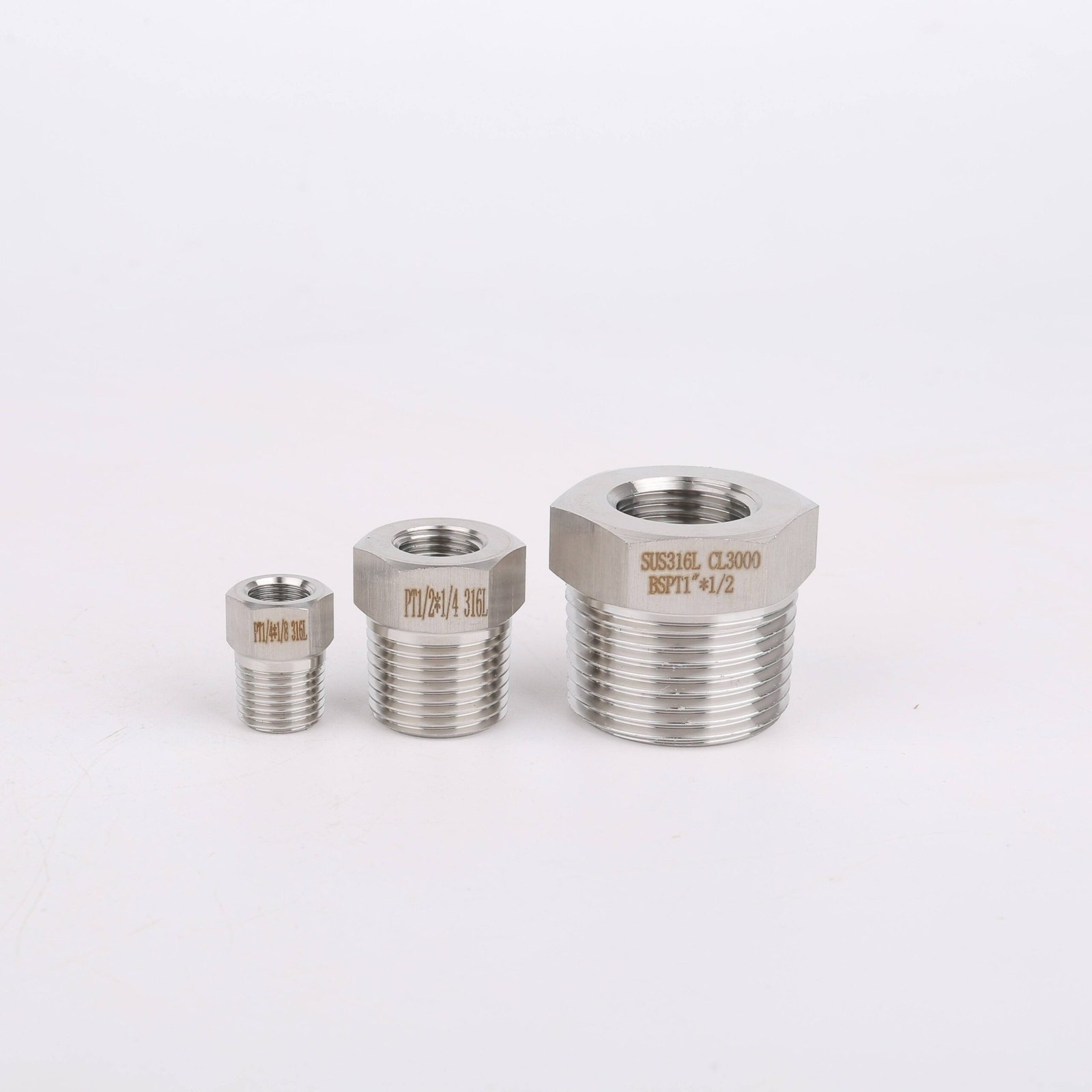

Reducing Bushings
- Diameter adaptation
- Concentric bore alignment
- Tight tolerance machining

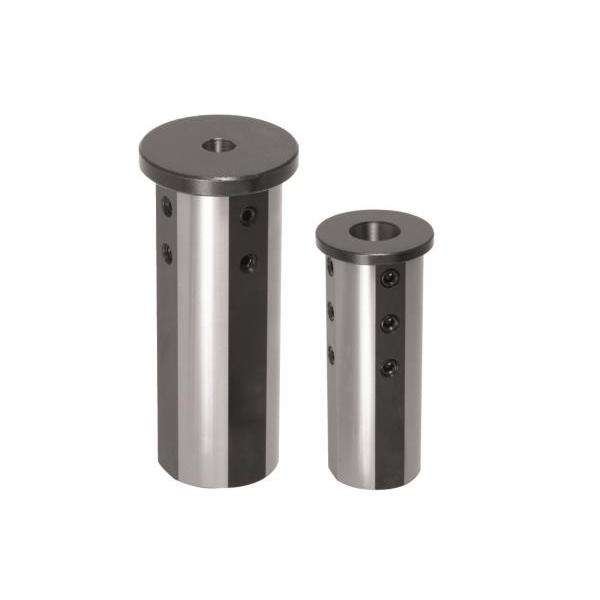

Drill Bushings
- Hardened tool steel
- Jig and fixture accuracy
- Wear resistance

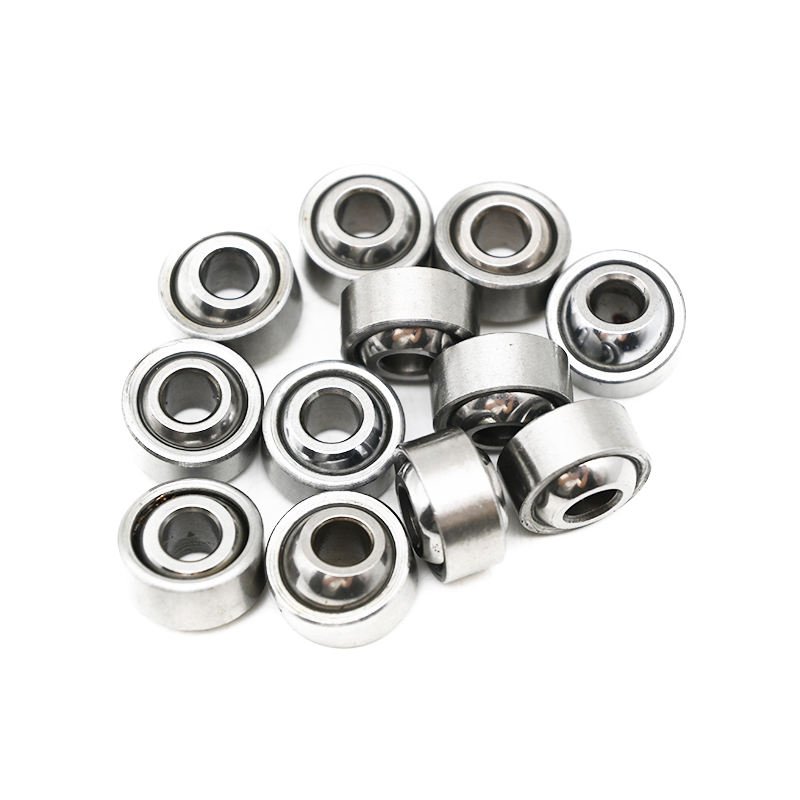

Spherical Bushings
- Angular misalignment compensation
- Heavy radial loads
- Self-aligning capability
Threaded Bushings
- Adjustable axial positioning
- Secure fastening
- Custom thread profiles
Bushing Materials

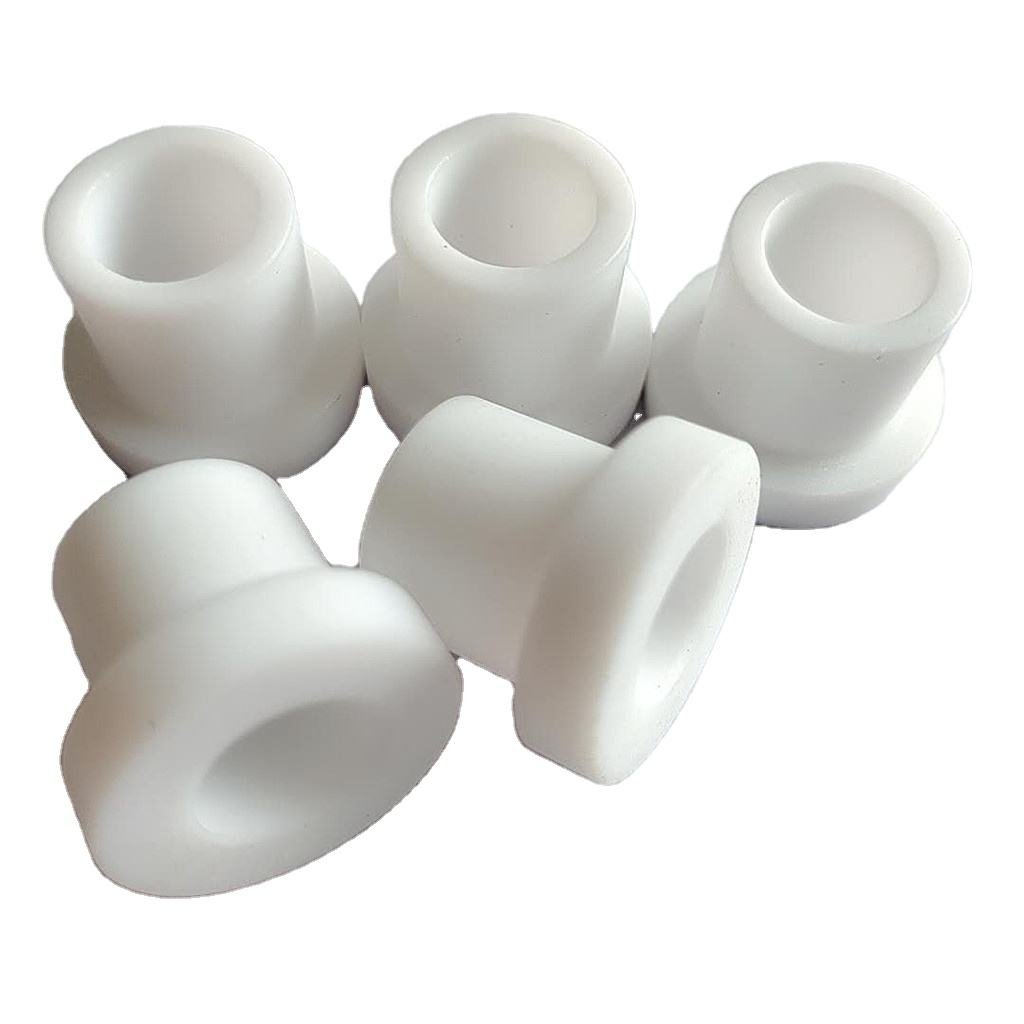

PTFE
Lowest friction, high chemical resistance.

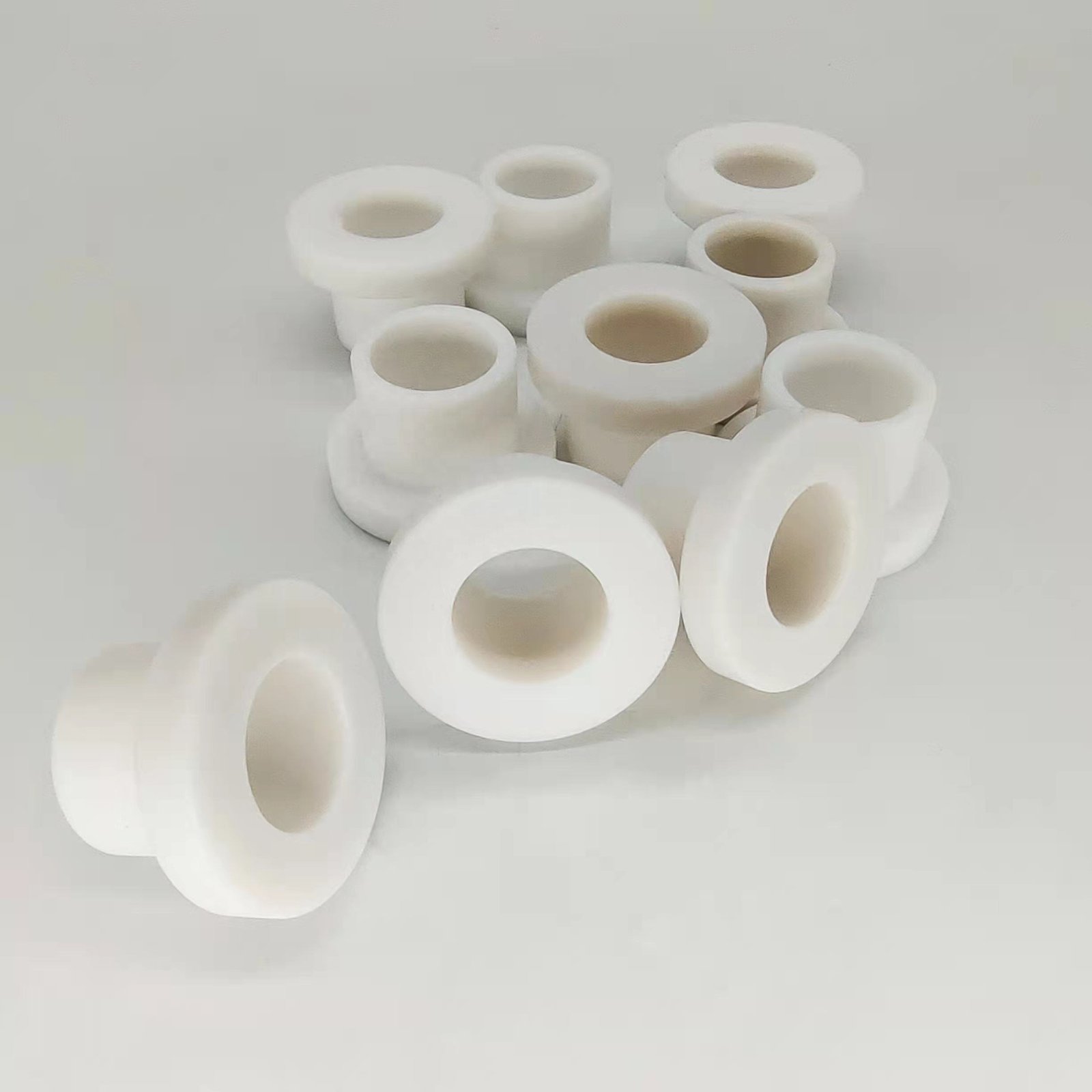

POM
High stiffness, dimensional stability.

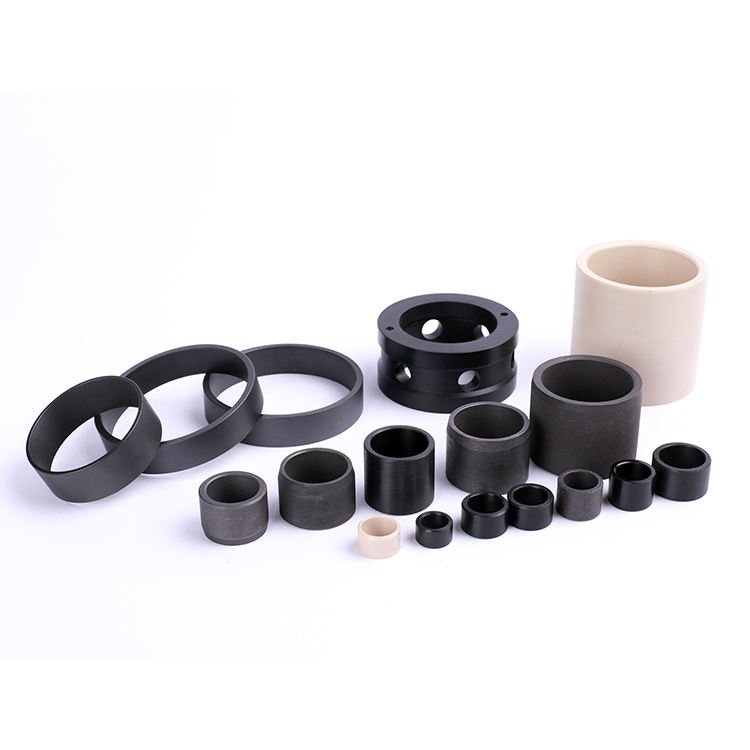

PEEK
High temp, high strength, aerospace grade.

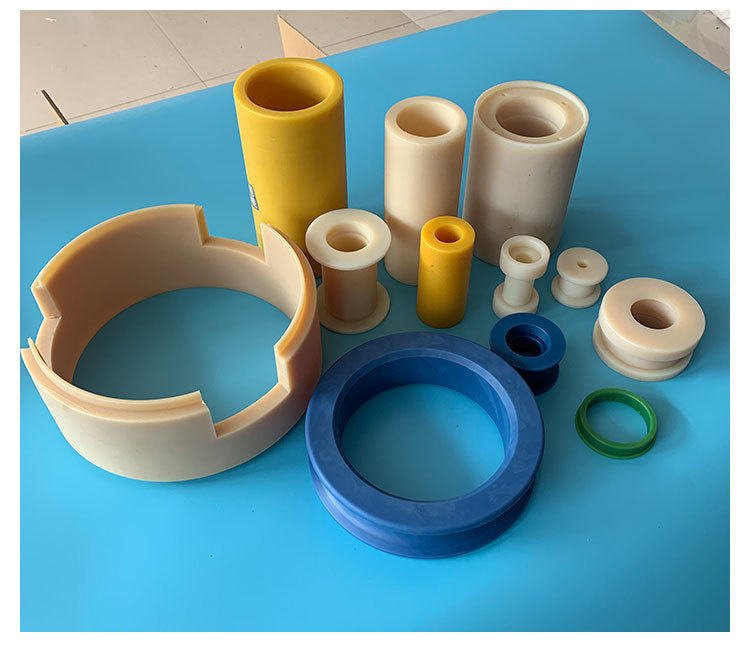

Nylon
Toughness, wear resistance, self-lubricating.
Plastic
Versatile custom plastic bushings.
Polyurethane
Impact resistance, elasticity, load bearing.

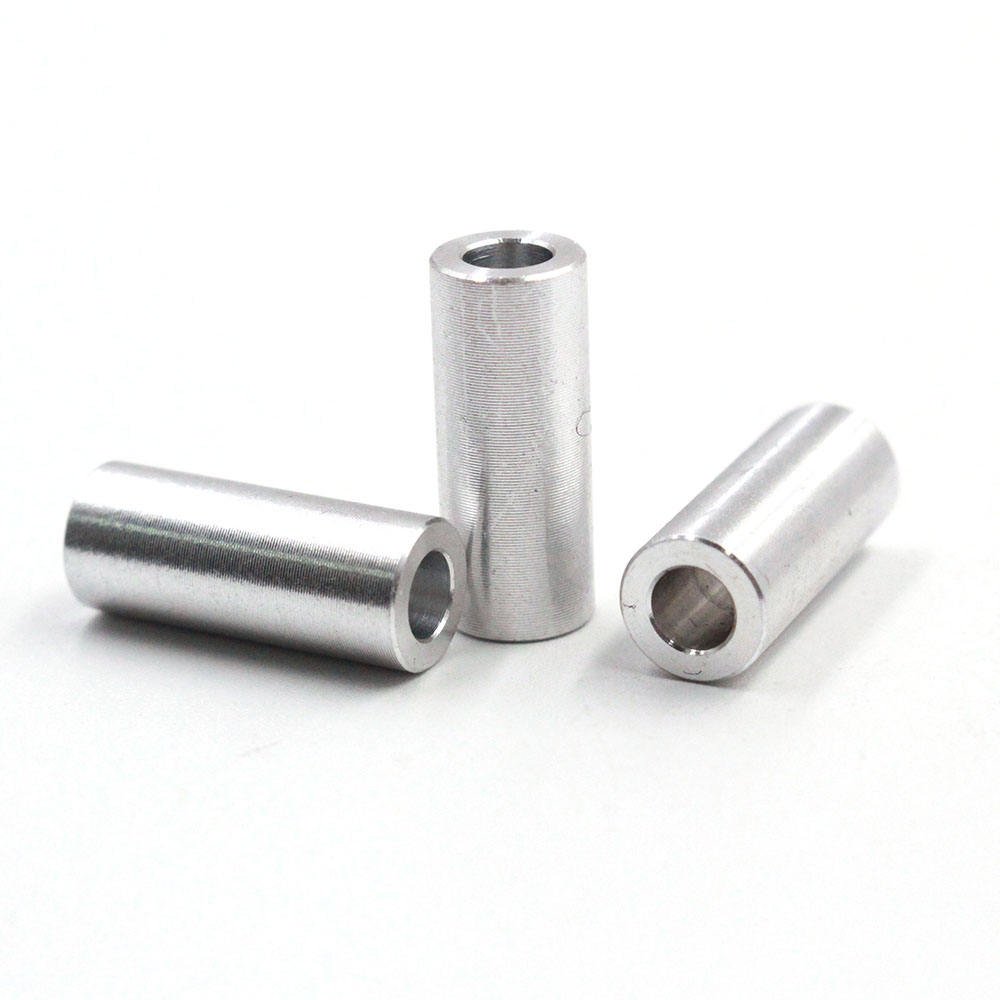

Aluminum
Lightweight, corrosion resistant.

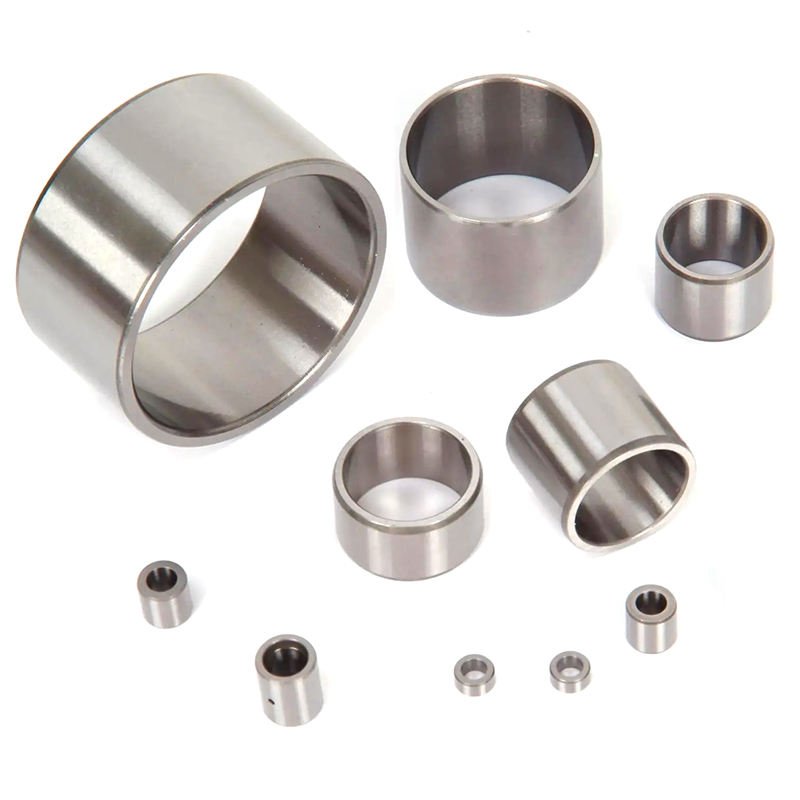

Stainless Steel
Excellent corrosion resistance, sanitary.

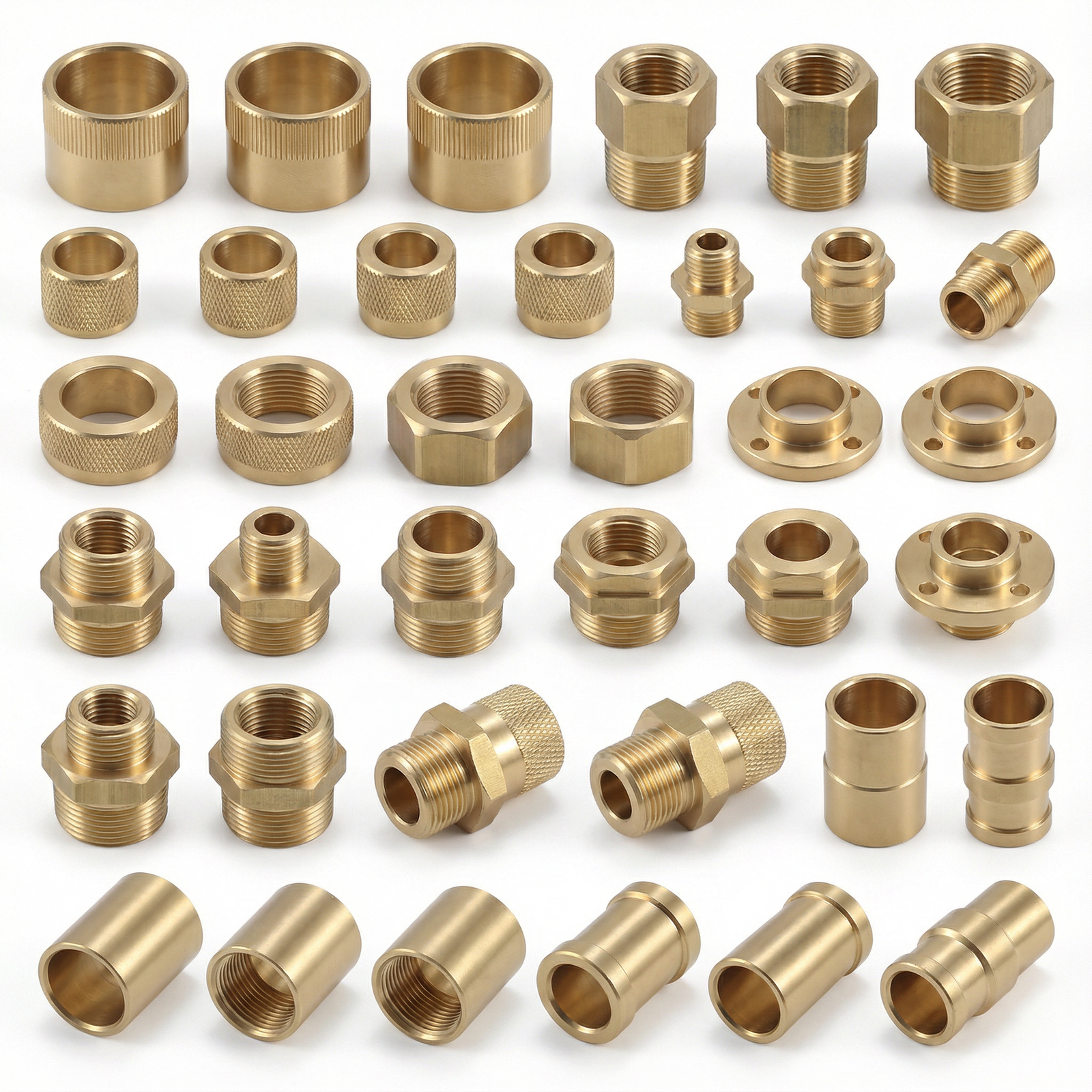

Brass
Anti-galling, aesthetic, easy machining.

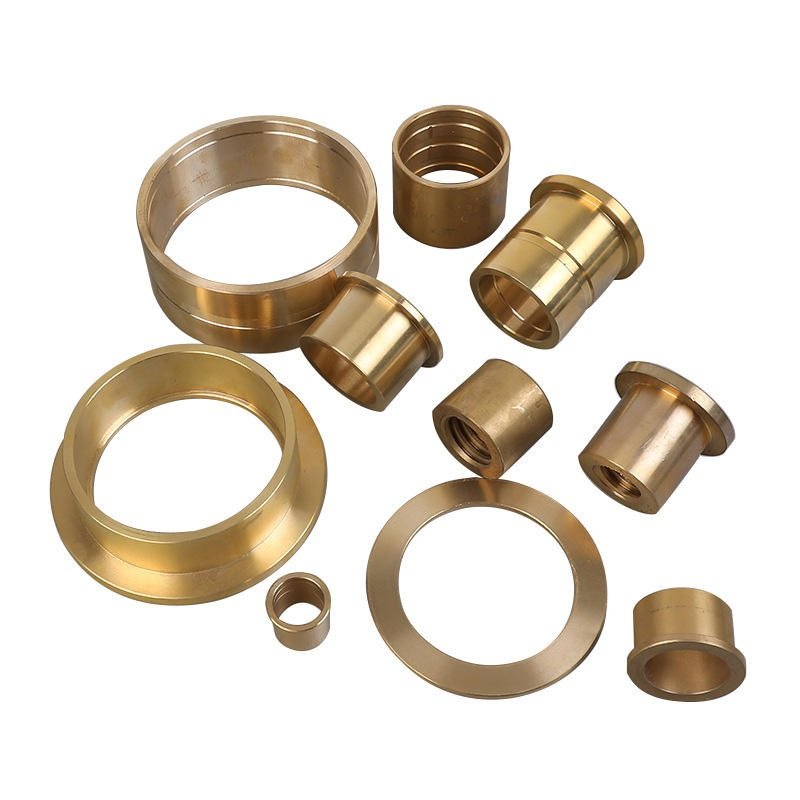

Bronze
Heavy load, high wear resistance.
Selection by Operating Conditions
| Operating Condition | Recommended Material Families |
|---|---|
| High Temperature (>150°C) | PEEK, Stainless Steel, Bronze |
| Chemical Exposure | PTFE, PVDF, Stainless Steel (316) |
| High Wear / Abrasive | Bronze, Nylon, Hardened Steel |
| NVH (Noise, Vibration, Harshness) | Polyurethane, Rubber, Sorbothane |
| Corrosive Environment | Stainless Steel, Plastic Bushings, Brass |
Custom-Only Manufacturing Workflow
RFQ
Submit specs
DFM
Engineering review
Sample
Prototyping
Validation
Testing
Production
CNC Machining
QA Pack
Inspection Reports
Capability Specification
| Parameter | Typical Range / Value | Process Control | Inspection Method |
|---|---|---|---|
| OD Tolerance | ± 0.005mm (Metal), ± 0.02mm (Plastic) | Precision Turning / Grinding | Laser Micrometer / Air Gage |
| ID Tolerance | H7, H8 or Custom Fits | Boring / Honing | Bore Gage / Plug Gage |
| Concentricity | Up to 0.01mm TIR | Single Setup Machining | CMM / Runout Tester |
| Surface Finish | Ra 0.4 – 3.2 µm | Polishing / Lapping | Profilometer |
| Length/Diameter Ratio | Up to 10:1 (Deep Hole Drilling) | Gun Drilling | CMM |
| Hardness | Custom (e.g., 60 HRC) / Durometer | Heat Treatment / Material Selection | Hardness Tester |
Quality & EEAT Evidence
Material Traceability
Full lot traceability with mill certificates available for all custom metal and plastic bushings.
Calibration
Regular calibration of all metrology equipment traceable to NIST standards.
CMM Inspection
Automated Coordinate Measuring Machine verification for complex geometries and GD&T.
Incoming Verification
Strict inspection of raw materials before manufacturing begins to ensure spec compliance.
Final Inspection Reports
Detailed dimensional reports provided with shipments upon request.
Packaging Controls
Secure packaging to prevent damage during transit, including corrosion inhibitors for metals.
Engineering Resources
For the fastest RFQ response, engineers should include STEP/IGES files, PDF drawings with critical tolerances (GD&T), material specifications (including specific grades or standards), and estimated annual quantities. Our engineering team reviews all submissions for DFM optimization.
