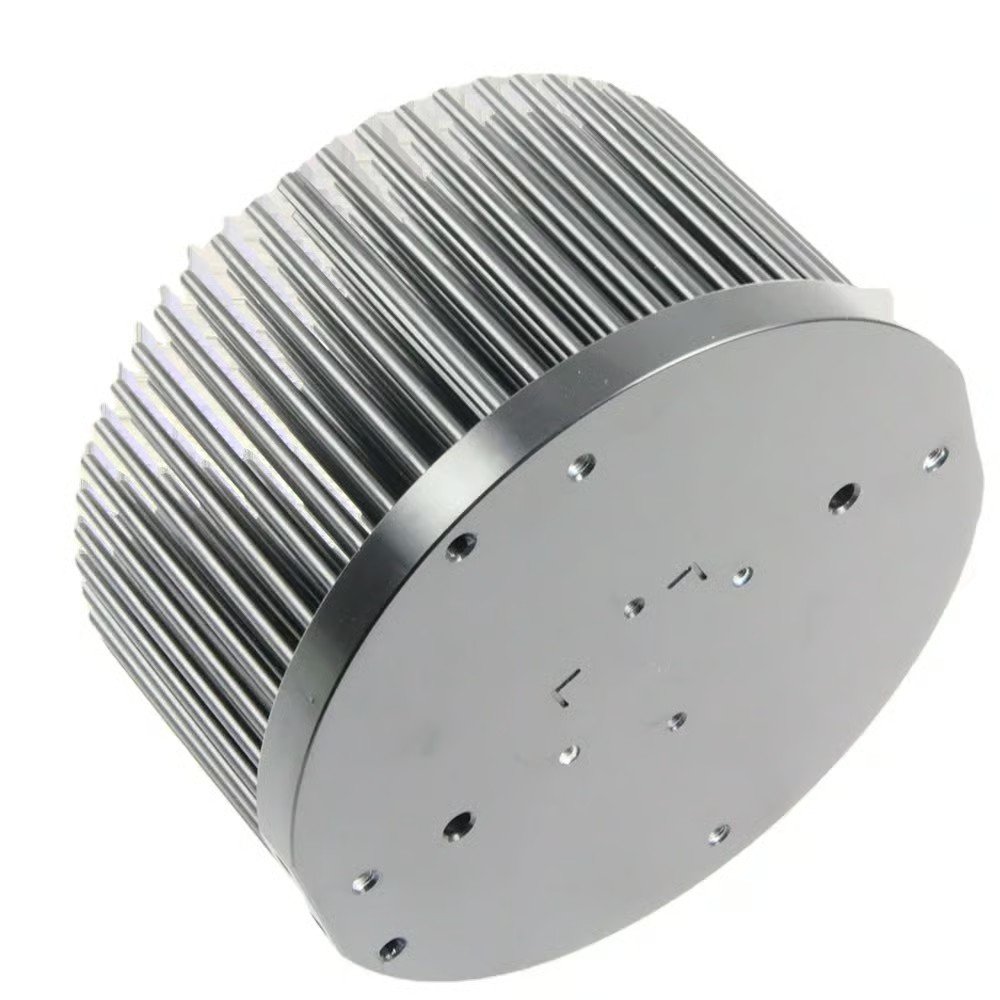

LED Heat Sink

LED Heat Sink Manufacturing

Professional thermal management solutions for LED lighting applications. Our precision-engineered heat sinks maximize LED lifespan, maintain lumen output, and ensure consistent color quality across residential, commercial, and industrial lighting systems.

Request Quote

The LED Heat Sink Imperative

LEDs convert approximately 70-80% of electrical energy into heat rather than light. This thermal load must be effectively dissipated to maintain LED junction temperatures within safe operating ranges—typically below 85°C for optimal performance and longevity.

Without proper heat sinking, elevated temperatures accelerate LED degradation through multiple failure mechanisms: reduced quantum efficiency, phosphor decomposition, color shift, and catastrophic junction failure. Professional LED heat sinks are not optional accessories but essential components determining lighting system reliability and total cost of ownership.

Rapidaccu’s 15 years of thermal engineering expertise ensures your LED products deliver specified performance throughout their rated lifespans.

50K+
Operating Hours
70%
Lumen Maintenance
85°C
Max Junction Temp
15yr
Manufacturing Experience

LED Heat Sink Product Catalog

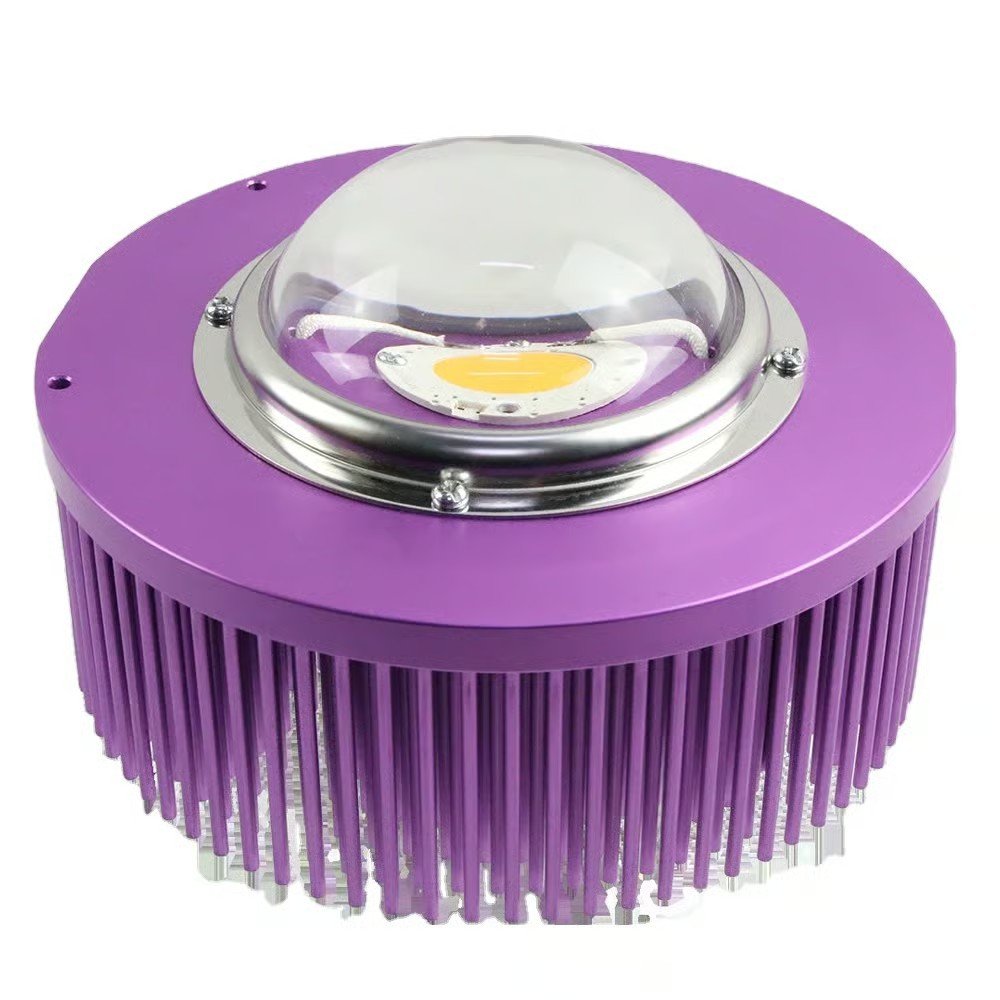

LED Lights Heatsink

Round Radiators

135W-180mm extruded aluminum heatsinks for LED lighting applications

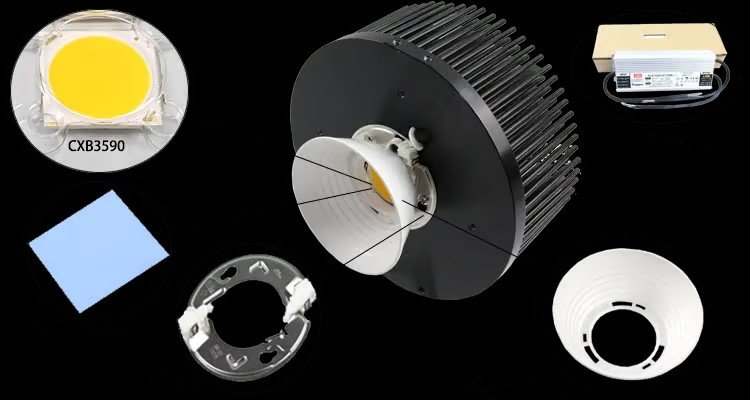

Anodized Aluminum Round Heat Sink

Grow Light Solutions

90w-120w anodized heatsinks for horticultural LED applications

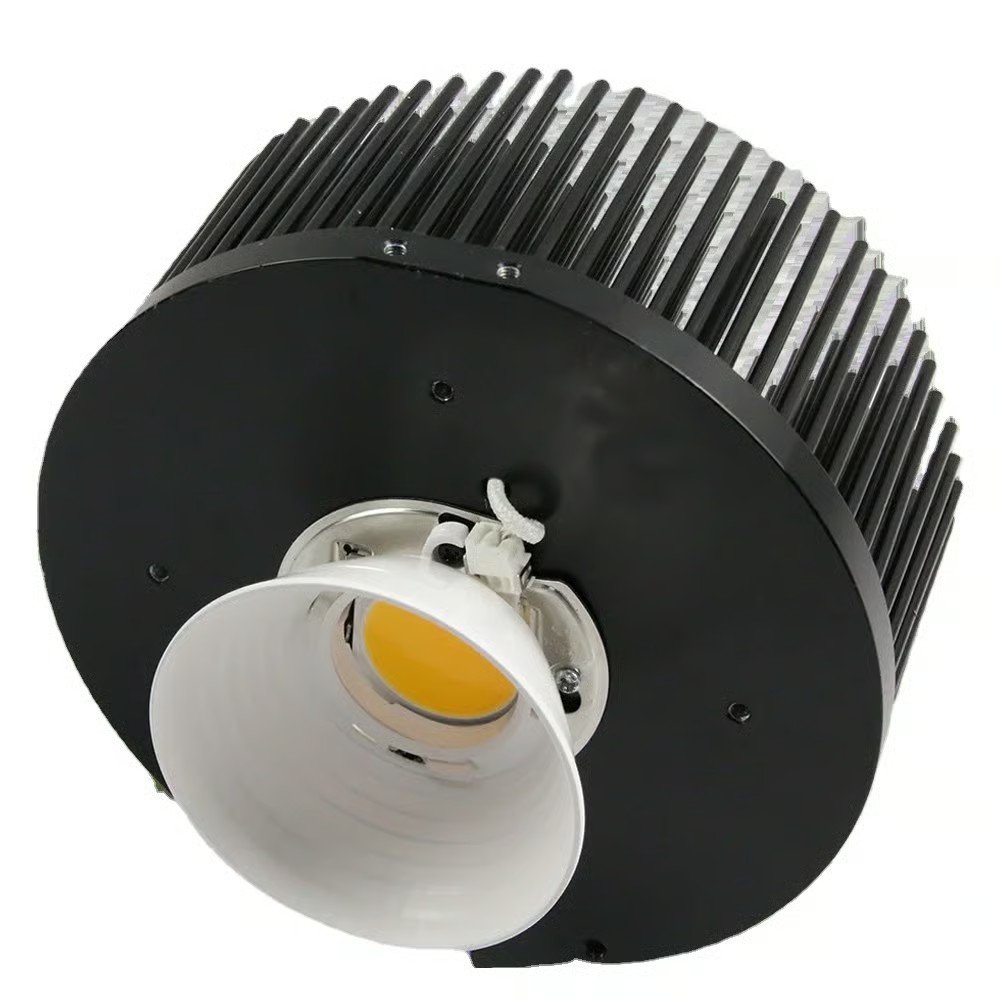

Pin Fin Heatsink

Pin Fin Arrays

180mm high-density pin fin designs for maximum surface area

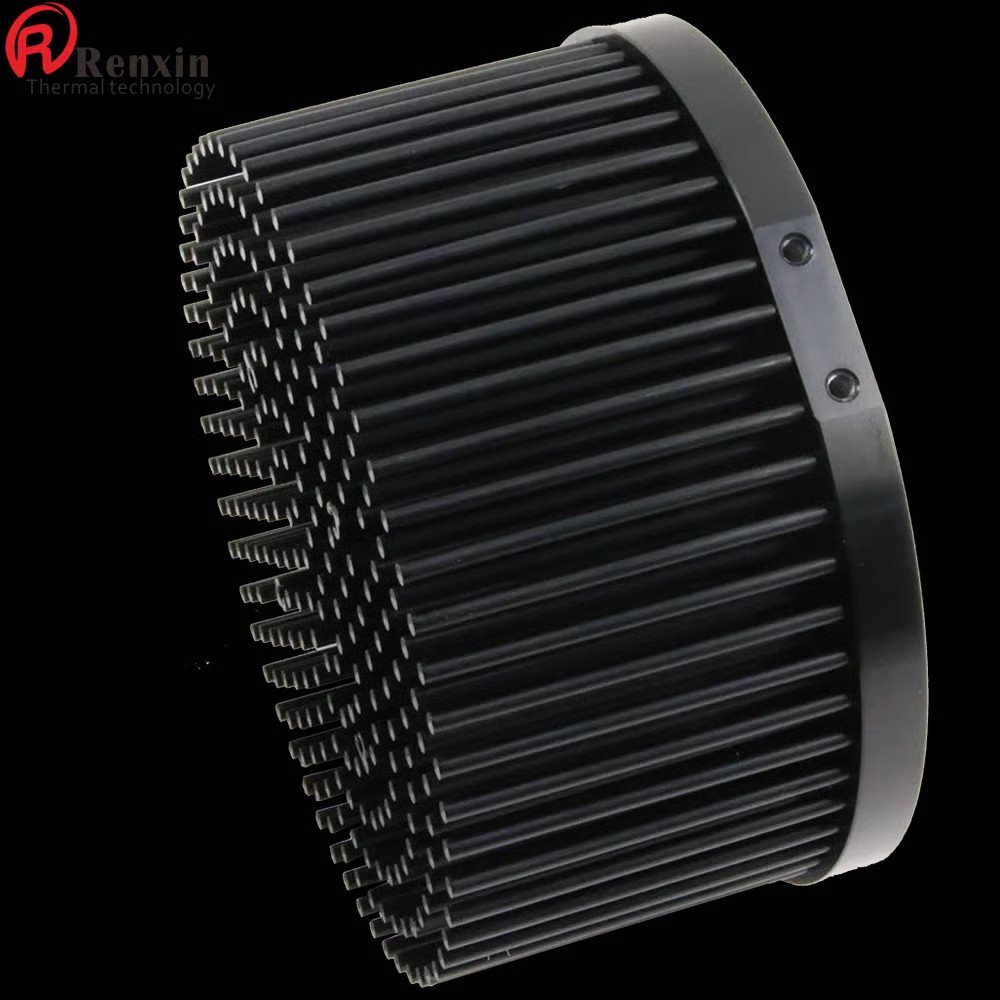

High Power LED Heatsink

High Power

50w+ pin fin round heatsinks for demanding LED applications

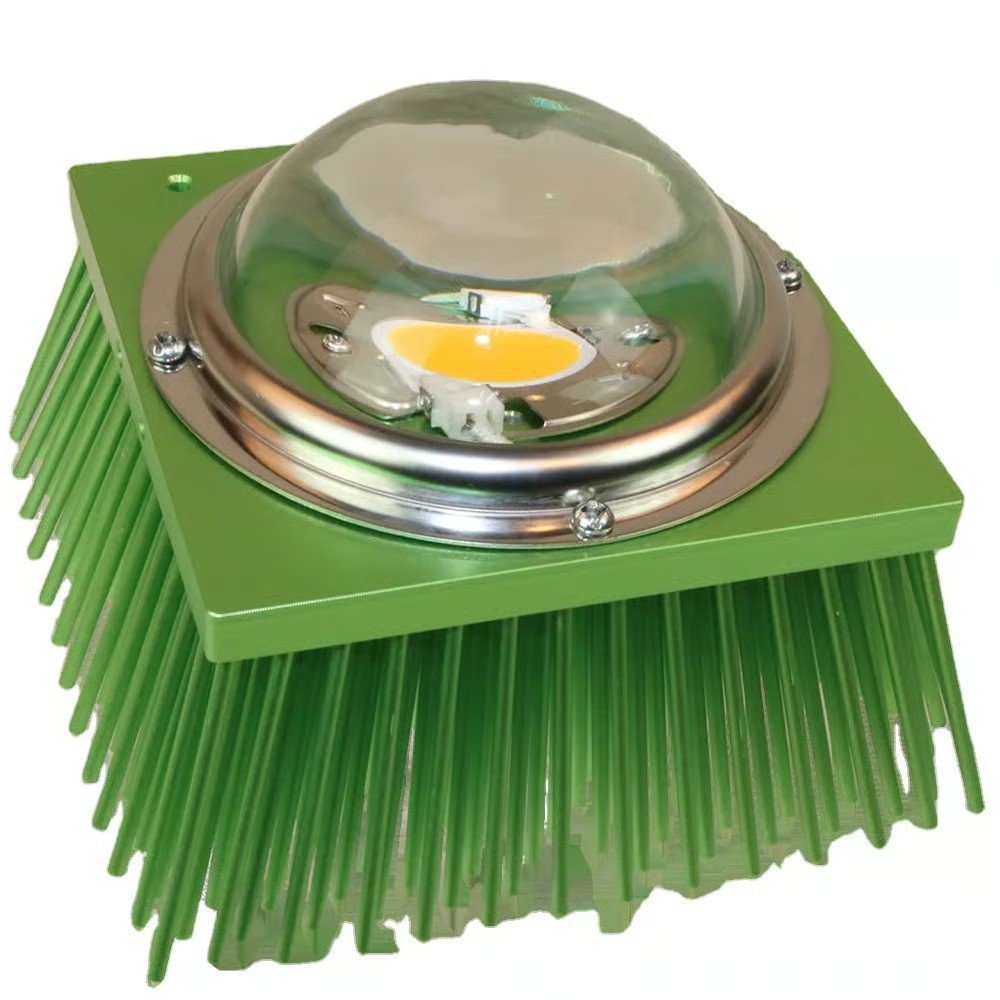

Square Aluminum Pin Heatsink

Square Profiles

125mm splayed aluminum pin heatsinks for LED lights

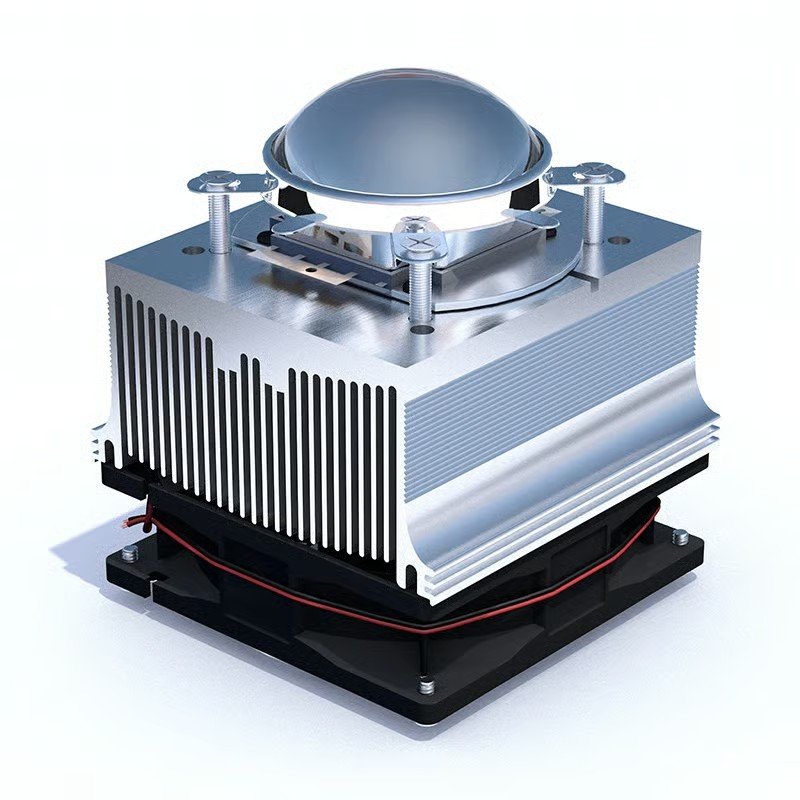

LED Chip Heatsink

Chip Coolers

Aluminum heatsinks for LED chips, transistors, and PCB modules

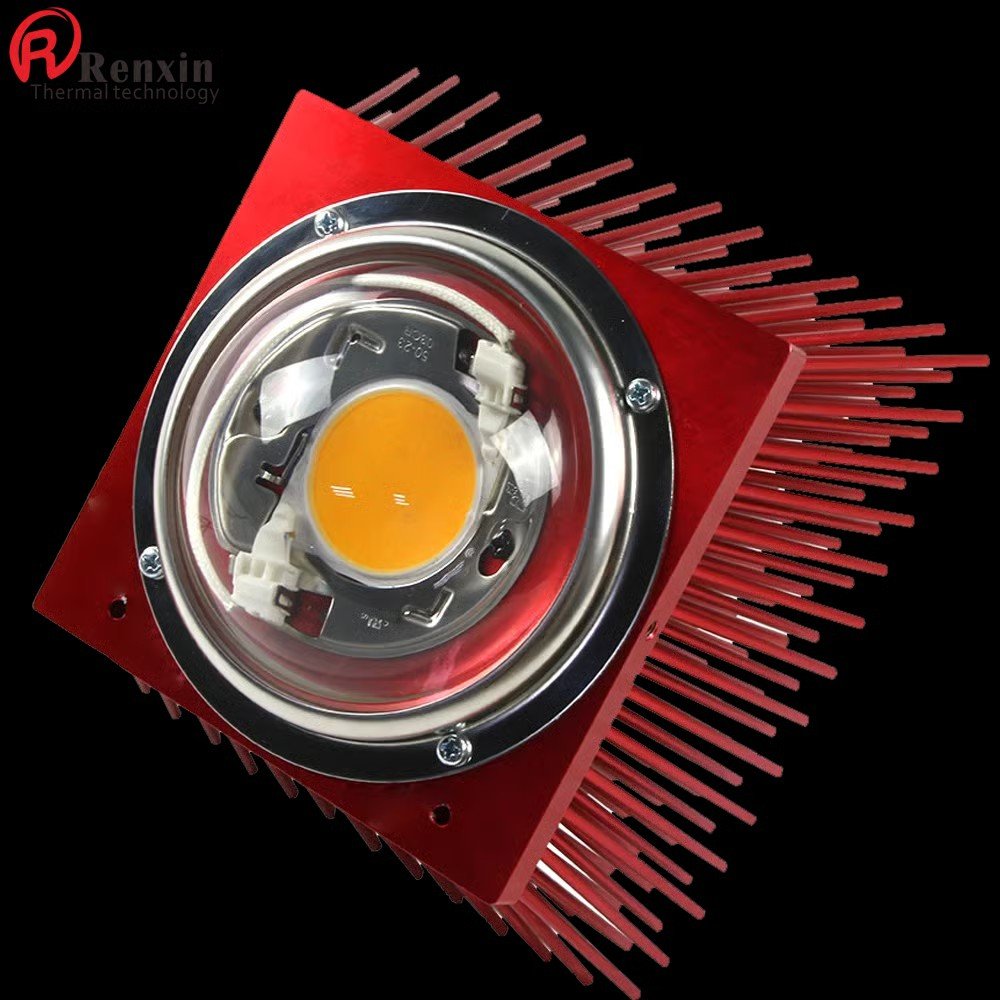

Heat Sink for LED Bulbs

Bulb Heatsinks

Anodized aluminum heatsinks specifically designed for LED bulbs

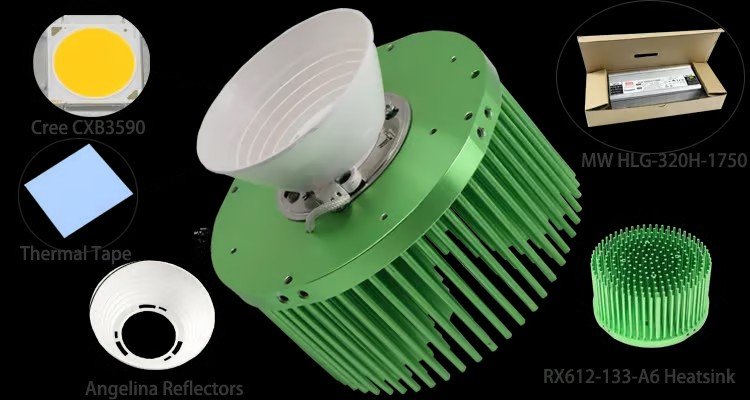

Custom Anodized Aluminum Heat Sink

Custom Designs

Tailored anodized aluminum heatsinks for specialized LED applications

Performance Benefits

Extended LED Life

Proper thermal management extends LED operational life from 30,000 to 50,000+ hours by maintaining junction temperatures within manufacturer specifications.

Lumen Maintenance

Effective heat sinking maintains >90% lumen output throughout rated life, preventing premature brightness degradation and ensuring consistent illumination.

Color Stability

Temperature control prevents color point drift, maintaining consistent CCT and excellent color rendering throughout product lifespan.

Manufacturing Capabilities

Rapidaccu combines multiple manufacturing processes to produce LED heat sinks meeting diverse application requirements. Our 15 years of experience ensures optimal selection of manufacturing methods based on performance needs, volume, and cost targets.

Extrusion

Cost-effective production of linear profiles with complex cross-sections for downlights and linear fixtures.

Die Casting

High-volume production of complex 3D geometries for bulbs, spotlights, and integrated LED fixtures.

CNC Machining

Precision manufacturing of custom designs and prototypes with tight tolerances and specialized features.

Pin Fin Forming

High-density pin arrays maximizing surface area for grow lights and high-bay industrial lighting.

Manufacturing Excellence

Application Industries

LED heat sinks enable reliable thermal management across all lighting sectors

Residential Lighting

LED bulbs, downlights, and fixtures for home illumination requiring compact, efficient thermal management.

Commercial Spaces

Office, retail, and hospitality lighting systems demanding reliable performance and extended maintenance intervals.

Industrial Facilities

High-bay LED fixtures, area lighting, and specialized industrial applications in demanding environments.

Street Lighting

Outdoor LED streetlights and area lighting requiring weather-resistant, long-life thermal solutions.

Horticultural Lighting

Grow lights for indoor agriculture demanding maximum LED performance in high-temperature environments.

Automotive Lighting

LED headlights, taillights, and interior lighting requiring compact designs and vibration resistance.

Frequently Asked Questions

How does a heat sink extend LED lifespan?

Heat sinks maintain LED junction temperatures within safe operating ranges (typically 85°C or below), dramatically reducing thermal stress. For every 10°C reduction in junction temperature, LED lifespan approximately doubles. Effective thermal management prevents accelerated degradation mechanisms including phosphor decomposition, encapsulant yellowing, and metallization diffusion. Properly heat-sinked LEDs routinely achieve 50,000-100,000 hours operational life compared to 10,000-20,000 hours without adequate cooling.

What size LED heat sink do I need?

Heat sink sizing depends on LED power (watts), thermal resistance requirements, ambient temperature, and available airflow. As a general rule, passive cooling requires approximately 50-100 cm² surface area per watt dissipated in still air. Active cooling with fans reduces this by 3-5x. Our engineering team performs thermal calculations based on your LED specifications, operating environment, and performance targets to recommend optimal heat sink dimensions and configurations.

Why use aluminum for LED heat sinks?

Aluminum offers the optimal combination of thermal conductivity (205 W/mK), light weight, corrosion resistance, cost-effectiveness, and manufacturability for LED applications. It’s significantly lighter than copper while providing sufficient thermal performance for most LED lighting. Aluminum extrusion enables complex fin geometries impossible with other materials. Anodizing provides enhanced corrosion protection and increased thermal emissivity. For ultra-high power applications, copper bases with aluminum fins offer the best thermal-to-cost ratio.

Can LED heat sinks be used outdoors?

Yes, with proper surface treatment. Outdoor LED lighting demands corrosion-resistant heat sinks withstanding temperature cycling, UV exposure, and moisture. Anodizing (minimum 10-15 microns) provides excellent protection for most environments. Powder coating over anodizing suits coastal or industrial atmospheres with high corrosion potential. Heat sink design should prevent water accumulation and allow drainage. Our outdoor-rated LED heat sinks are proven in streetlights, architectural lighting, and area illumination applications worldwide.

What’s the difference between pin fin and traditional finned heat sinks?

Pin fin heat sinks feature cylindrical pins arranged in arrays, providing superior surface area and omnidirectional airflow compared to parallel fin designs. This enables more compact designs for the same thermal performance. Pin fins excel in applications with natural convection or multi-directional airflow like grow lights and high-bay fixtures. Traditional straight fins optimize performance with directed airflow and cost less for linear fixtures. Selection depends on application geometry, airflow characteristics, and space constraints.

Do you offer custom LED heat sink designs?

Absolutely. We specialize in custom LED heat sink engineering tailored to your specific lighting products. Our capabilities include custom extrusion dies, die-cast tooling, CNC-machined prototypes, and various fin configurations. Whether developing new LED luminaires or optimizing existing designs, we provide thermal analysis, design optimization, prototyping, and volume production. Our engineering team works from your LED specifications, thermal requirements, and industrial design constraints to develop cost-effective thermal solutions.

Transform Your LED Lighting Performance

Partner with Rapidaccu for precision-engineered LED heat sinks that maximize luminaire lifespan, maintain lumen output, and ensure your lighting products exceed customer expectations.

Request Custom Thermal Solution

Get Your Custom Quote
