Precision Gear Shaft Manufacturing
Rapidaccu delivers exceptional gear shaft manufacturing solutions for global industries. With 15 years of CNC machining expertise, we produce high-precision gear shafts meeting the most demanding specifications.
What Are Gear Shafts?
Gear shafts are precision-engineered rotating components that transmit torque and motion between mechanical systems. These critical parts integrate gear teeth directly onto the shaft body, combining both functions into a single, robust component for optimal power transmission efficiency.
Integrated Design
Gear teeth machined directly onto shaft body eliminating coupling points and improving structural integrity.
Power Transmission
Efficient torque transfer through precisely manufactured gear profiles for smooth operation.
Multi-Functionality
Combines shaft rotation and gear engagement functions in one precision-machined component.
Manufacturing Specifications
Industry-leading capabilities for gear shaft production
Diameter Capacity
0.1″ – 24″
Comprehensive range accommodating miniature to large-scale gear shafts
Length Capacity
Up to 236″
Extended shaft lengths for industrial gearbox applications
Precision Straightness
Up to .0002″
Critical for smooth gear mesh and minimal vibration
CNC Machining Excellence
Our advanced CNC machining centers deliver gear shafts with exceptional tooth profile accuracy and surface finish quality. Multi-axis capabilities enable complex geometries including helical gears, splines, and custom tooth patterns.
Gear Tooth Cutting
Precision hobbing, shaping, and milling for accurate tooth profiles and pitch
Multi-Axis Turning
Complex shaft geometries with multiple diameter steps and features
Surface Finishing
Grinding and polishing for optimal gear mesh performance
Forging & Heat Treatment
Forged gear shafts offer superior strength and fatigue resistance. Our heat treatment processes optimize material properties for demanding transmission applications.
Strength Increase
+45%
Fatigue Life
3x
Hardness Range
HRC 58
Case Depth
1.5mm
Gear Shaft Types We Manufacture
Comprehensive solutions for diverse transmission requirements

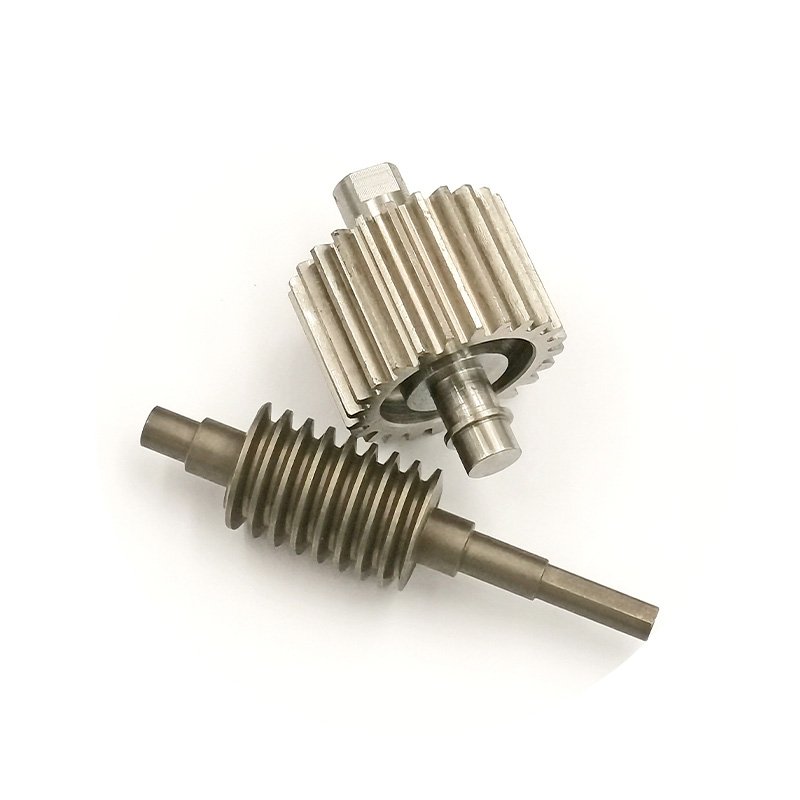

Spur Gear Shafts
Straight teeth parallel to shaft axis for efficient parallel power transmission. Ideal for high-speed applications with minimal axial thrust.
- Pressure angles: 14.5°, 20°, 25°
- Module range: 0.5 to 12

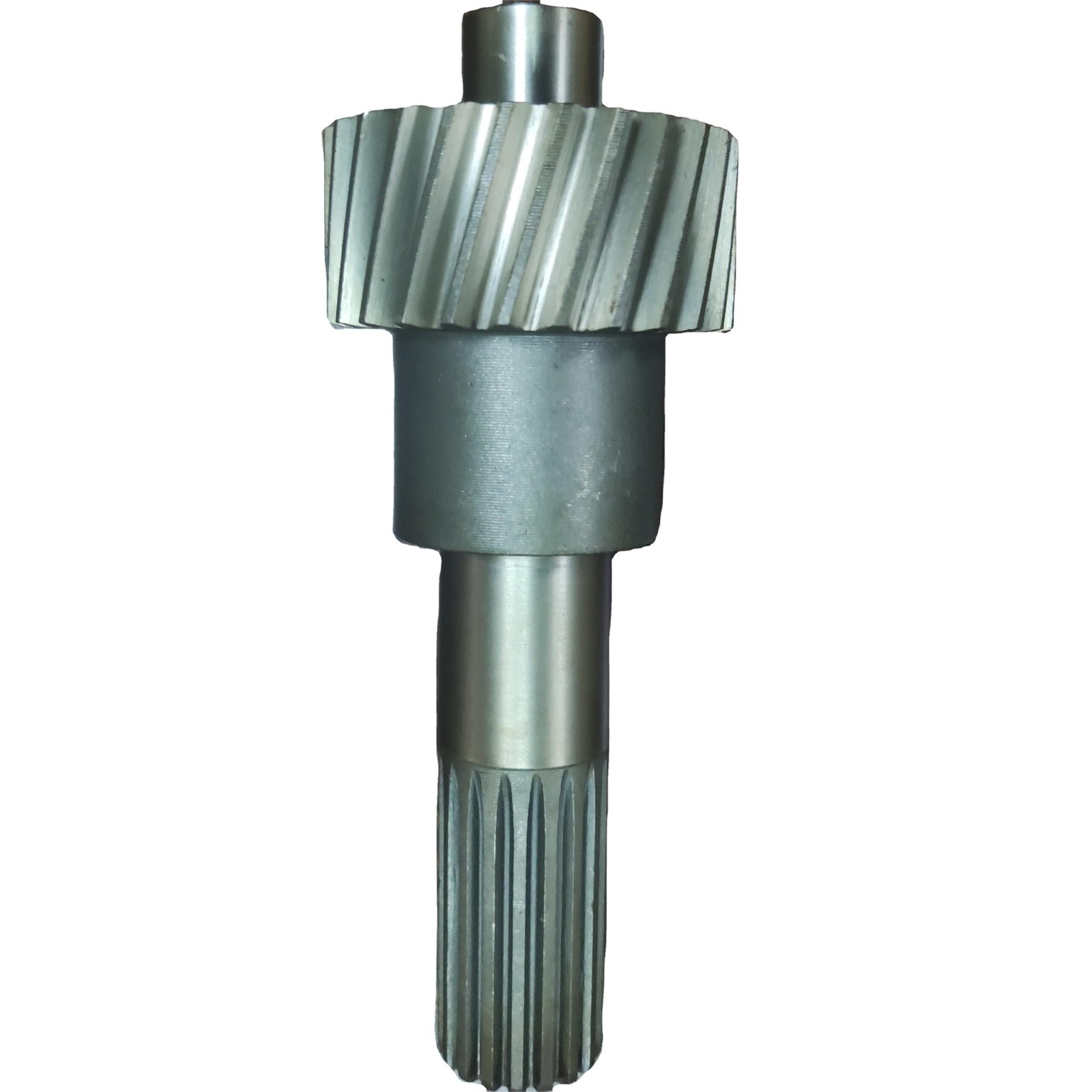

Helical Gear Shafts
Angled teeth providing smoother, quieter operation with higher load capacity. Superior for heavy-duty industrial gearboxes.
- Helix angles: 15° to 45°
- Single or double helical

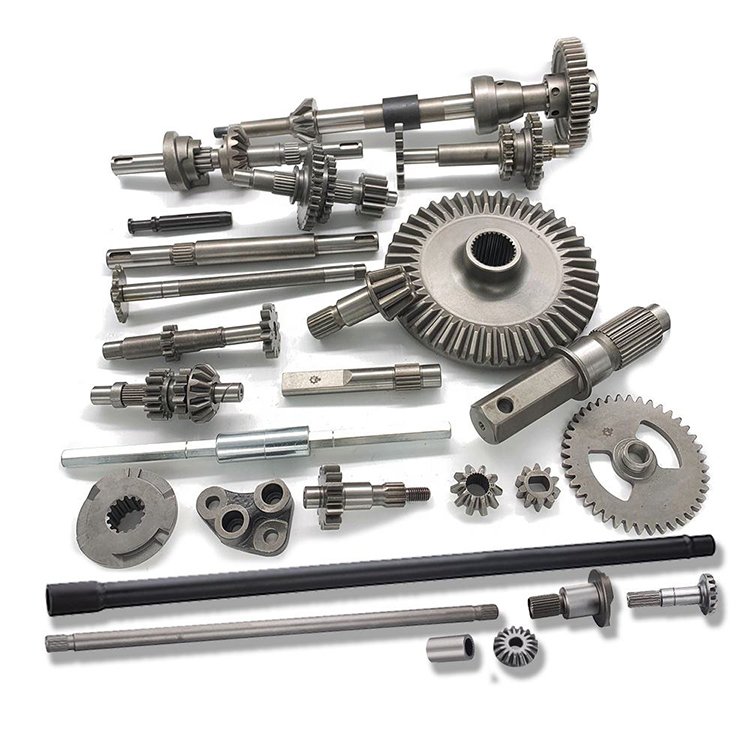

Bevel Gear Shafts
Conical gear teeth for angular power transmission, typically 90°. Essential for differential and right-angle drive applications.
- Straight and spiral bevel
- Custom shaft angles

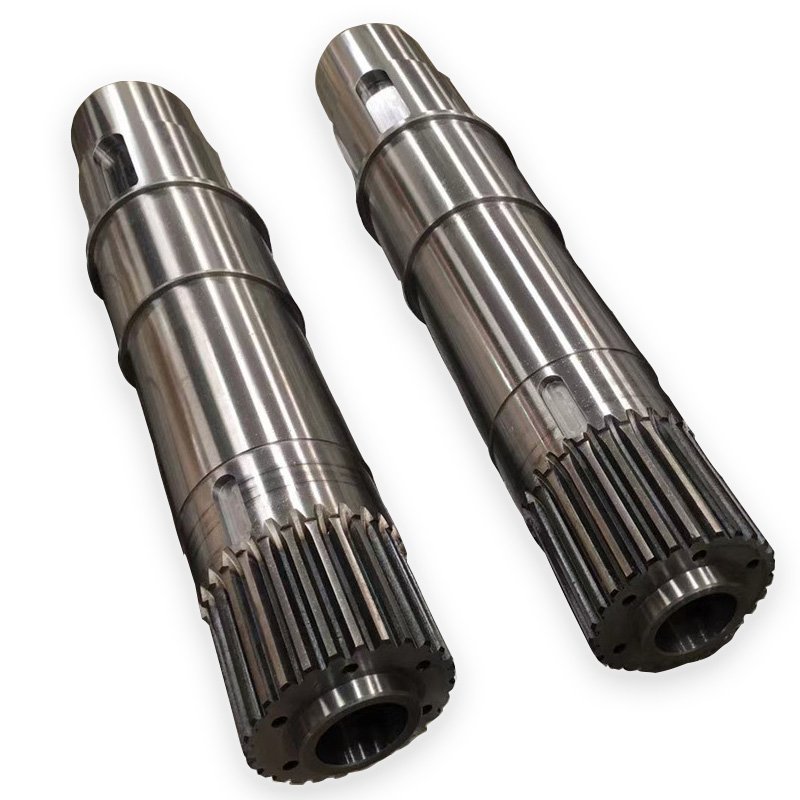

Spline Gear Shafts
Combined gear teeth and spline profiles for simultaneous power transmission and sliding engagement capability.
- Involute and straight splines
- DIN and ANSI standards
Why Choose Rapidaccu
As a trusted CNC machining manufacturer with 15 years of global export experience, Rapidaccu combines advanced technology with precision craftsmanship to deliver gear shafts that exceed expectations.
Advanced Equipment
State-of-the-art CNC gear cutting machines and multi-axis machining centers
Quality Assurance
ISO 9001 certified with comprehensive CMM inspection and material traceability
Export Excellence
15 years serving international markets with reliable quality and documentation
Custom Solutions
Engineering support for complex gear shaft designs and special requirements
Applications & Industries
Gear shafts engineered for critical transmission systems
Automotive
Industrial
Agriculture
Marine
Machinery
Energy
Frequently Asked Questions
Common questions about gear shaft manufacturing
What gear types can be machined on shafts?
We manufacture spur gears, helical gears, bevel gears, worm gears, and spline combinations directly on shaft bodies. Our capabilities include various modules, pressure angles, and helix angles according to DIN, AGMA, and ISO standards.
What materials do you use for gear shafts?
Common materials include 4140, 4340, 8620 alloy steels for carburizing, 1045 carbon steel, 17-4PH stainless steel, and tool steels. Material selection depends on load requirements, environment, and heat treatment specifications.
What gear quality grades can you achieve?
Our CNC gear cutting and grinding equipment achieves AGMA quality grades 10-12 (DIN 6-8) for precision applications. We provide complete gear inspection reports including tooth profile, lead, pitch, and runout measurements.
Do you offer heat treatment services?
Yes, we provide comprehensive heat treatment including carburizing, nitriding, induction hardening, through hardening, and tempering. Case hardening depths range from 0.5mm to 2.5mm with hardness up to HRC 62 depending on material and application.
Can you manufacture gear shafts to custom specifications?
Absolutely. We specialize in custom gear shaft manufacturing from customer drawings and specifications. Our engineering team assists with design optimization, material selection, and manufacturing process planning for unique applications.
What inspection methods are used for gear shafts?
We employ CMM inspection, gear analyzers for tooth geometry, surface roughness testers, hardness testing, and magnetic particle inspection. Complete first article inspection reports and material certifications are provided with every order.
Explore Our Other Shaft Products
Comprehensive shaft manufacturing solutions for diverse applications
Drive Shaft
Power transmission
Cam Shaft
Valve control
Axle Shaft
Vehicle drive systems
Crank Shaft
Engine power
Motor Shaft
Electric motors
Spline Shaft
Torque transfer
Worm Shaft
Speed reduction
Welded Shaft
Fabricated assemblies
CV Shaft
Constant velocity
Jack Shaft
Intermediate drive
Propeller Shaft
Marine applications
PTO Shaft
Agricultural equipment
Steering Shaft
Automotive steering
Request Your Gear Shaft Quote
Partner with Rapidaccu for precision gear shaft manufacturing that meets your exact specifications. Our team is ready to support your project from design to delivery.
Manufacturing Location
Rongli Industrial Park, Dalang, Longhua District, Shenzhen, China
Email Contact
info@rapidaccu.comIndustry Experience
15 Years Manufacturing Excellence
