Expert Spline Shaft Manufacturing
Rapidaccu delivers precision spline shaft manufacturing for global transmission systems. With 15 years of CNC machining expertise, we produce involute and straight spline shafts meeting international standards for demanding applications.
What Are Spline Shafts?
Spline shafts are precision-machined components featuring longitudinal ridges and grooves that enable torque transmission while allowing axial movement. These versatile shafts provide superior load distribution compared to keyways, making them essential for high-torque applications in automotive, industrial, and aerospace systems.
Torque Transfer
Multiple spline teeth distribute load evenly preventing stress concentration and shaft failure
Axial Movement
Sliding engagement allows length variation while maintaining constant torque transmission
High Precision
Accurate tooth spacing ensures smooth engagement and minimal backlash in operation
Manufacturing Specifications
Precision spline shaft production with advanced CNC capabilities
Diameter Range
0.1″ – 24″
From micro splines to heavy-duty industrial applications
Maximum Length
Up to 236″
Extended spline shafts for specialized transmission systems
Straightness
Up to .0002″
Critical accuracy for smooth spline engagement
Spline Specifications
Tooth Count
6 – 100
Pitch Diameter
0.1″ – 20″
Pressure Angle
30° / 37.5° / 45°
Standards
DIN / ANSI / ISO
Tolerance Class
IT6 – IT8
Spline Types We Manufacture
Comprehensive solutions for diverse transmission requirements

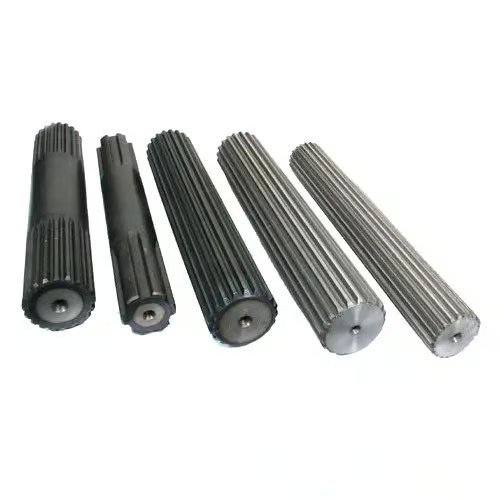

Involute Splines
Curved tooth profile based on involute geometry providing self-centering characteristics and optimal load distribution. Ideal for high-speed, high-torque applications.
- DIN 5480 / ANSI B92.1 standards
- 30°, 37.5°, 45° pressure angles
- Self-centering capability
- Superior load capacity

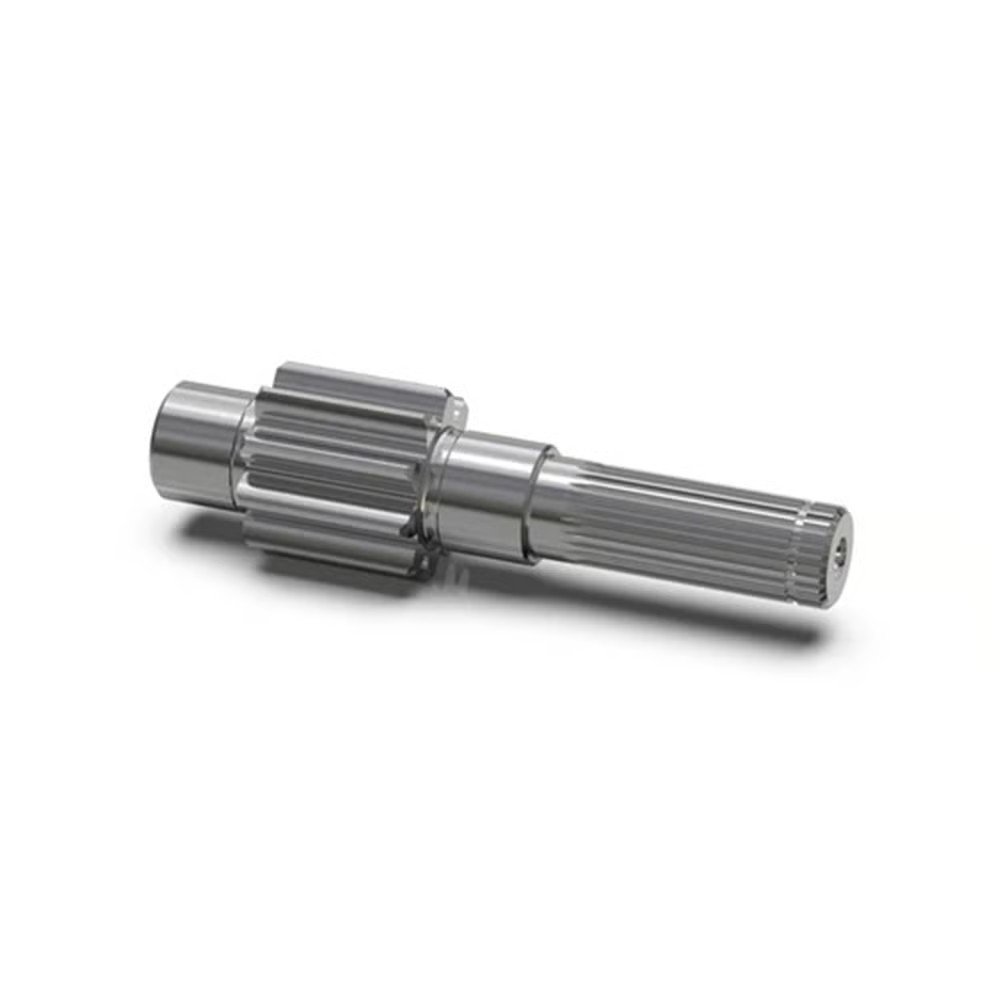

Straight Sided Splines
Parallel-sided teeth with flat or fillet root forms offering simple manufacturing and reliable performance. Commonly used in automotive and industrial machinery.
- SAE / ANSI B92.2M standards
- 4, 6, 10, 16 spline configurations
- Major diameter fit or side fit
- Cost-effective production

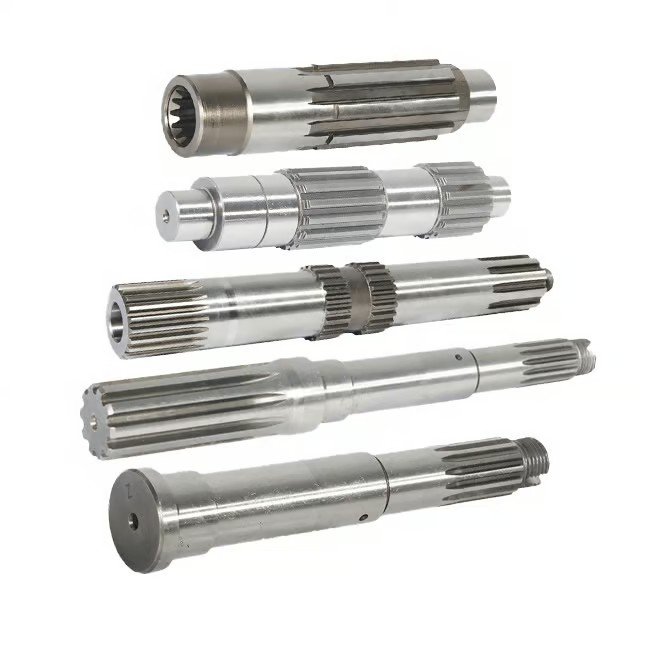

Helical Splines
Angled spline teeth providing gradual engagement for smoother operation and higher load capacity. Ideal for high-performance transmission systems.
- Helix angles 15° – 45°
- Smoother engagement
- Reduced noise and vibration
- Higher torque capacity

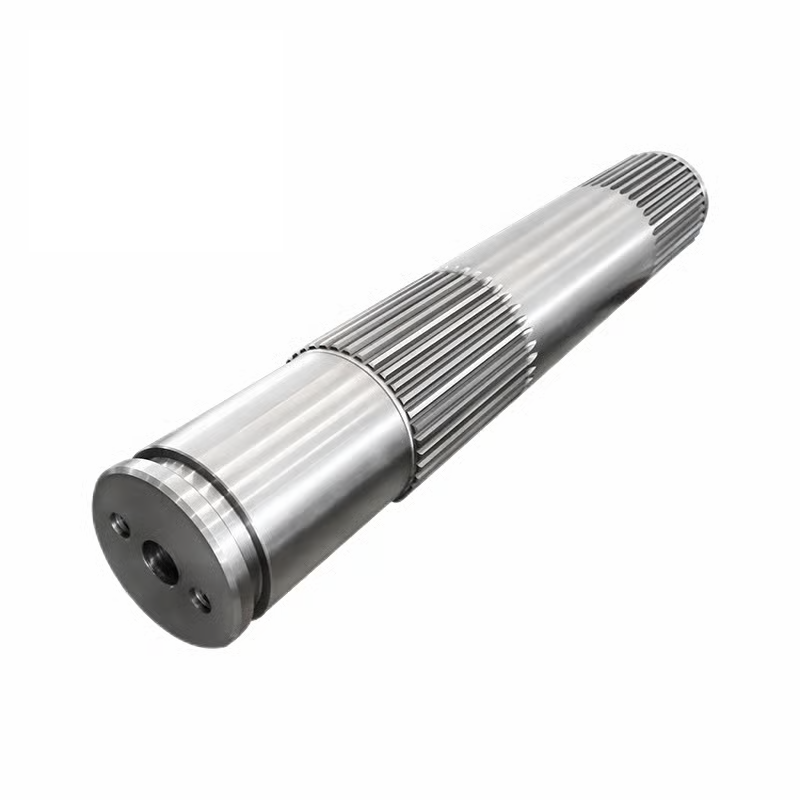

Crowned Splines
Modified tooth profile with longitudinal crown allowing angular misalignment compensation. Perfect for applications requiring shaft deflection tolerance.
- Misalignment tolerance up to 3°
- Edge stress reduction
- Extended service life
- Universal joint applications
CNC Spline Machining
Our advanced CNC machining centers produce spline shafts with exceptional tooth accuracy and surface finish. Multi-axis capabilities enable complex geometries including crowned profiles, variable pitch, and custom tooth forms.
CNC Spline Milling
Precision form milling and broaching for accurate tooth profiles and spacing
Spline Grinding
Post-heat treatment grinding for hardened splines achieving IT6 tolerance
Multi-Axis Turning
Integrated shaft machining with spline cutting in single setup
Forging & Heat Treatment
Forged spline shaft blanks deliver superior strength and fatigue resistance. Our comprehensive heat treatment processes optimize material properties for demanding torque transmission applications.
Carburizing
Case hardening for wear-resistant spline teeth
Induction Hardening
Selective hardening of spline profiles
Nitriding
Surface hardening with minimal distortion
Through Hardening
Uniform hardness throughout shaft
Why Choose Rapidaccu
With 15 years of precision machining excellence, Rapidaccu is your trusted partner for high-quality spline shaft manufacturing serving global markets with reliable quality and comprehensive documentation.
Advanced Equipment
State-of-the-art CNC spline milling and grinding machines ensuring precision
ISO 9001 Certified
Comprehensive quality management systems and inspection protocols
Global Export Experience
15 years serving international clients with full documentation support
Engineering Support
Expert assistance for custom spline designs and specifications
Industry Applications
Spline shafts engineered for critical power transmission systems
Automotive
Transmissions
Aerospace
Actuators
Industrial
Machinery
Agriculture
Implements
Heavy Equipment
Drives
Frequently Asked Questions
Expert answers about spline shaft manufacturing
What is the difference between involute and straight-sided splines?
Involute splines feature curved teeth based on gear involute geometry, providing self-centering and higher load capacity. Straight-sided splines have parallel-sided teeth that are simpler to manufacture and commonly used in automotive applications. Involute splines are preferred for high-torque, precision applications.
What materials are suitable for spline shafts?
Common materials include 4140, 4340, 8620 alloy steels for carburizing, 1045 carbon steel, stainless steel (303, 304, 316), and tool steels. Material selection depends on torque requirements, operating environment, and heat treatment specifications. We provide material recommendations based on your application.
What spline standards do you manufacture to?
We manufacture spline shafts to international standards including DIN 5480 (involute splines), ANSI B92.1 (involute splines), ANSI B92.2M (straight-sided splines), SAE standards, and ISO 4156. We also produce custom splines to customer specifications and drawings.
Can you grind splines after heat treatment?
Yes, we provide precision spline grinding services for hardened shafts to correct heat treatment distortion and achieve tight tolerances (IT6-IT7). Our CNC spline grinding equipment handles involute and straight-sided profiles with excellent surface finish quality.
What inspection methods are used for spline shafts?
We employ CMM inspection for tooth geometry, spline analyzers for profile and lead accuracy, gauge pin measurement for effective space width, surface roughness testing, and hardness verification. Complete first article inspection reports with dimensional data are provided.
Do you offer crowned spline manufacturing?
Yes, we manufacture crowned splines with longitudinal tooth modifications to accommodate angular misalignment and reduce edge loading. Crown specifications are optimized based on expected misalignment angles and load conditions in your application.
Explore Our Other Shaft Products
Comprehensive shaft manufacturing solutions for diverse applications
Drive Shaft
Power transmission
Cam Shaft
Valve control
Axle Shaft
Vehicle drive systems
Crank Shaft
Engine power
Motor Shaft
Electric motors
Gear Shaft
Integrated gears
Worm Shaft
Speed reduction
Welded Shaft
Fabricated assemblies
CV Shaft
Constant velocity
Jack Shaft
Intermediate drive
Propeller Shaft
Marine applications
PTO Shaft
Agricultural equipment
Steering Shaft
Automotive steering
Request Your Spline Shaft Quote
Partner with Rapidaccu for precision spline shaft manufacturing. Our expert team is ready to support your project with quality craftsmanship and reliable delivery.
