Precision Welded Shaft Manufacturing
Rapidaccu specializes in welded shaft fabrication combining precision welding with advanced CNC machining. Our 15 years of manufacturing expertise delivers complex welded shaft assemblies for heavy-duty industrial applications worldwide.
Understanding Welded Shafts
Welded shafts are fabricated components created by joining multiple shaft sections or attaching gears, flanges, and other features through precision welding processes. This manufacturing method enables cost-effective production of complex shaft assemblies while maintaining structural integrity and dimensional accuracy for heavy-duty transmission systems.
Component Integration
Combine shaft sections with gears, flanges, and couplings into single assembly
Weight Reduction
Hollow shaft construction reduces weight while maintaining strength
Cost Efficiency
Economical alternative to solid machined shafts for large assemblies
Manufacturing Capabilities
Advanced welding and machining for complex shaft assemblies
Diameter Range
0.1″ – 24″
From small welded assemblies to heavy-duty industrial shafts
Maximum Length
Up to 236″
Extended welded shaft assemblies for specialized equipment
Straightness
Up to .0002″
Post-weld machining ensures precision alignment
Welding Specifications
Welding Processes
TIG / MIG / Submerged Arc
Joint Types
Butt / Fillet / Seal
Weld Standards
AWS / ISO 3834
Inspection
NDT / UT / RT
Welded Shaft Configurations
Custom fabrication solutions for diverse applications

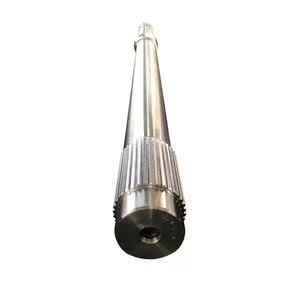

Shaft-to-Shaft Welding
Joining solid or hollow shaft sections to create extended length assemblies. Full penetration butt welds ensure structural integrity equivalent to solid shafts.
- Extended length capability beyond single piece machining limits
- Different material sections for optimized properties
- Post-weld heat treatment and stress relieving

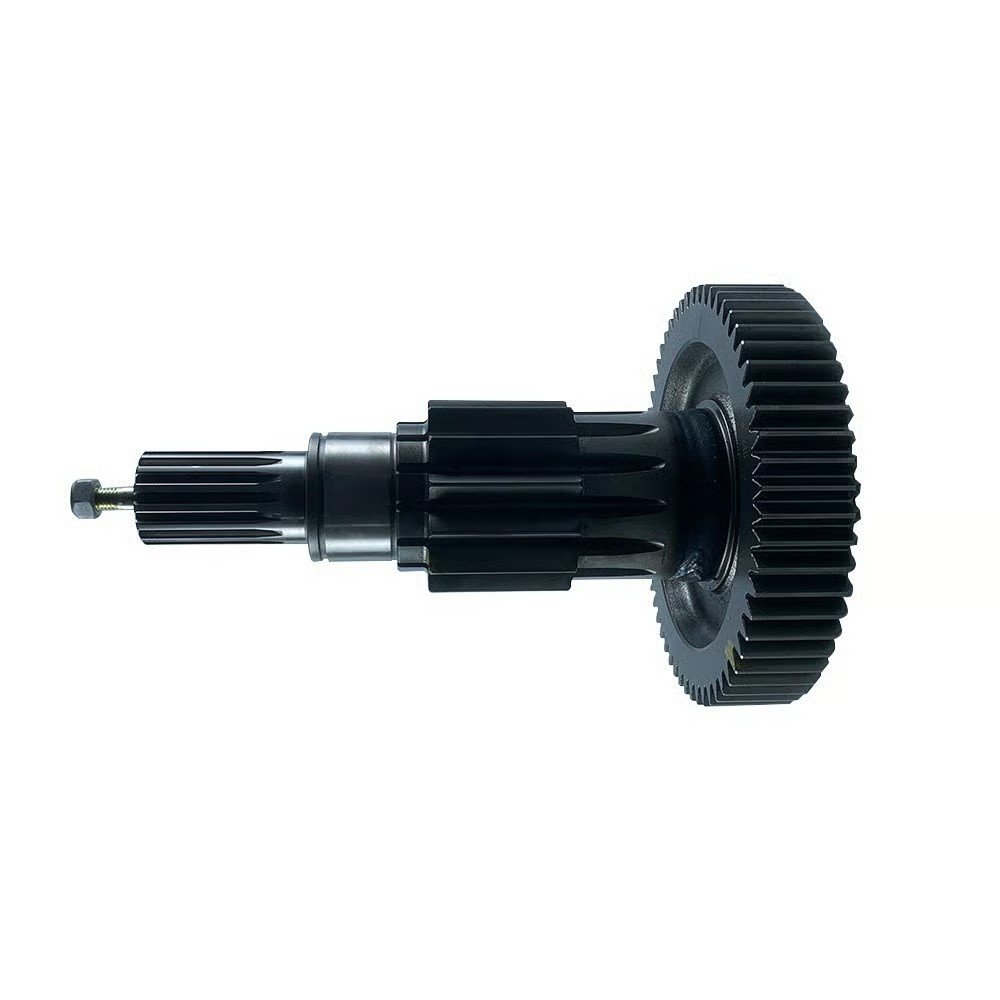

Gear-to-Shaft Welding
Attaching gears directly to shaft bodies creating integrated assemblies for transmission systems. Precision welding maintains gear concentricity and tooth alignment.
- Cost-effective alternative to single-piece gear shafts
- Allows different materials for gear and shaft sections
- Full runout inspection ensuring gear concentricity

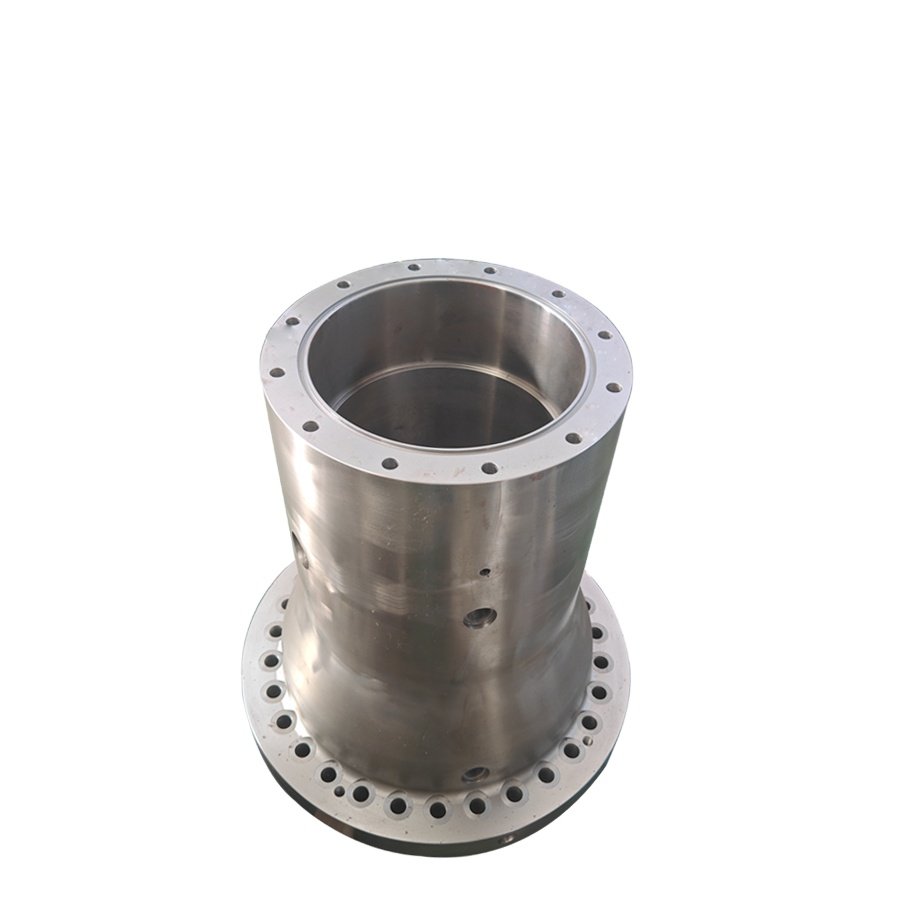

Flange-to-Shaft Welding
Welding flanges to shaft ends for bolted connections in drive systems. Fillet or groove welds provide high-strength attachment for torque transmission.
- Custom flange designs for specific bolt patterns
- Full penetration welds for maximum strength
- Face machining after welding ensures flatness
Hollow Welded Shafts
Fabricated hollow shafts reducing weight while maintaining torsional stiffness. Longitudinal or circumferential seam welds create lightweight structures.
- Weight reduction up to 50% versus solid shafts
- Maintains high torsional strength and rigidity
- Post-weld straightening and balancing available
CNC Machining After Welding
Post-weld CNC machining ensures welded shaft assemblies meet precise dimensional and surface finish requirements. Our multi-axis machining centers correct welding distortion and achieve final specifications.
Precision Turning
Machining shaft diameters, shoulders, and bearing surfaces to final tolerances
Straightness Correction
Straightening and machining to achieve specified straightness tolerances
Surface Finishing
Grinding and polishing critical surfaces for optimal performance
Component Forging & Heat Treatment
Individual components are forged for enhanced mechanical properties before welding. Post-weld heat treatment relieves residual stresses and optimizes material performance.
Stress Relief
Post-weld thermal treatment
Normalization
Grain structure refinement
Hardening
Selective area hardening
Tempering
Toughness optimization
Why Choose Rapidaccu
With 15 years of manufacturing excellence, Rapidaccu delivers welded shaft assemblies combining precision welding expertise with advanced CNC machining capabilities for global industrial markets.
Certified Welders
AWS certified welding professionals with extensive experience in shaft fabrication
Integrated Services
Complete welding, machining, and heat treatment under one roof
Quality Inspection
NDT testing, dimensional verification, and comprehensive documentation
Global Experience
15 years serving international clients with reliable delivery
Applications & Industries
Welded shaft solutions for demanding industrial environments
Heavy Trucks
Transmission shafts
Gearboxes
Auxiliary shafts
Industrial
Machinery drives
Agriculture
Equipment shafts
Marine
Propulsion systems
Construction
Heavy equipment
Mining
Conveyor drives
Energy
Wind turbines
Frequently Asked Questions
Expert answers about welded shaft manufacturing
What welding processes do you use for shaft fabrication?
We utilize TIG (GTAW), MIG (GMAW), and submerged arc welding depending on material thickness, shaft diameter, and application requirements. All welding is performed by AWS certified welders following approved WPS procedures. Post-weld inspection includes visual, UT, and RT testing as specified.
How do you ensure welded shaft straightness?
Welding sequence and fixturing minimize distortion during fabrication. Post-weld stress relief heat treatment removes residual stresses. Final straightness is achieved through precision machining and straightening operations, verified with dial indicator inspection on rotating centers.
What materials can be used for welded shafts?
Common materials include carbon steels (1020, 1045), alloy steels (4140, 4340, 8620), stainless steels (304, 316, 17-4PH), and specialized materials. Material compatibility is verified for weldability, and appropriate filler metals and welding parameters are selected for each combination.
What NDT inspection methods are available?
We provide comprehensive NDT services including ultrasonic testing (UT) for internal defects, radiographic testing (RT) for weld quality verification, magnetic particle inspection (MPI) for surface cracks, and dye penetrant testing (PT). Inspection reports are provided with material certificates.
Can you weld heat-treated components?
Yes, we can weld pre-hardened components using appropriate preheat and interpass temperature controls. Post-weld heat treatment may be required depending on material and hardness levels. Alternative approaches include welding before heat treatment with subsequent re-hardening of the assembly.
What is the typical lead time for welded shafts?
Lead times vary based on complexity, quantity, and specifications. Typical production schedules range from 4-8 weeks including welding, heat treatment, machining, and inspection. Rush orders can be accommodated. Contact us with your requirements for accurate timeline estimation.
Explore Our Other Shaft Products
Comprehensive shaft manufacturing solutions for diverse applications
Drive Shaft
Power transmission
Cam Shaft
Valve control
Axle Shaft
Vehicle drive systems
Crank Shaft
Engine power
Motor Shaft
Electric motors
Gear Shaft
Integrated gears
Spline Shaft
Torque transfer
Worm Shaft
Speed reduction
CV Shaft
Constant velocity
Jack Shaft
Intermediate drive
Propeller Shaft
Marine applications
PTO Shaft
Agricultural equipment
Steering Shaft
Automotive steering
Start Your Welded Shaft Project
Contact Rapidaccu for expert welded shaft fabrication combining precision welding with advanced machining. Our team delivers quality, reliability, and comprehensive support for your industrial applications.
