BOARD CONNECTION SOLUTIONS

PCB Pins Connector

Complete connector solutions for board-to-board, wire-to-board, and panel mount applications. Reliable electrical connections for your electronic systems.

Pin Count

2-200 Pins

Current

Up to 20A

Voltage

Up to 600V

Cycles

10K+

Get Custom Connectors

Connector Categories

We manufacture comprehensive PCB pin connectors for various interconnection needs

Board-to-Board

Direct PCB stacking connectors for compact multi-board assemblies with secure mechanical and electrical connections.

Vertical stacking
Right angle mounting
High-density options

Wire-to-Board

Terminal blocks and header connectors enabling easy wire connections to PCB assemblies for field wiring.

Crimp termination
Screw terminals
Spring clamp

Panel Mount

Chassis-mounted connectors for external connections through enclosure panels with secure mounting.

Threaded mounting
Snap-in designs
IP rated versions

Product Portfolio

Explore our diverse range of PCB pins connectors

72-Pin Card Edge Connector

3.96mm pitch PCB mounting pins

Spring Loaded Pogo Pin

90 degree right angle PCB connector

USB Power Jack

DC power PCB pin connector

M8 Connector PCB Mount

3-8 pin right angle with bracket

10 Pin PCB Connector

2.5mm pitch wire terminal connector

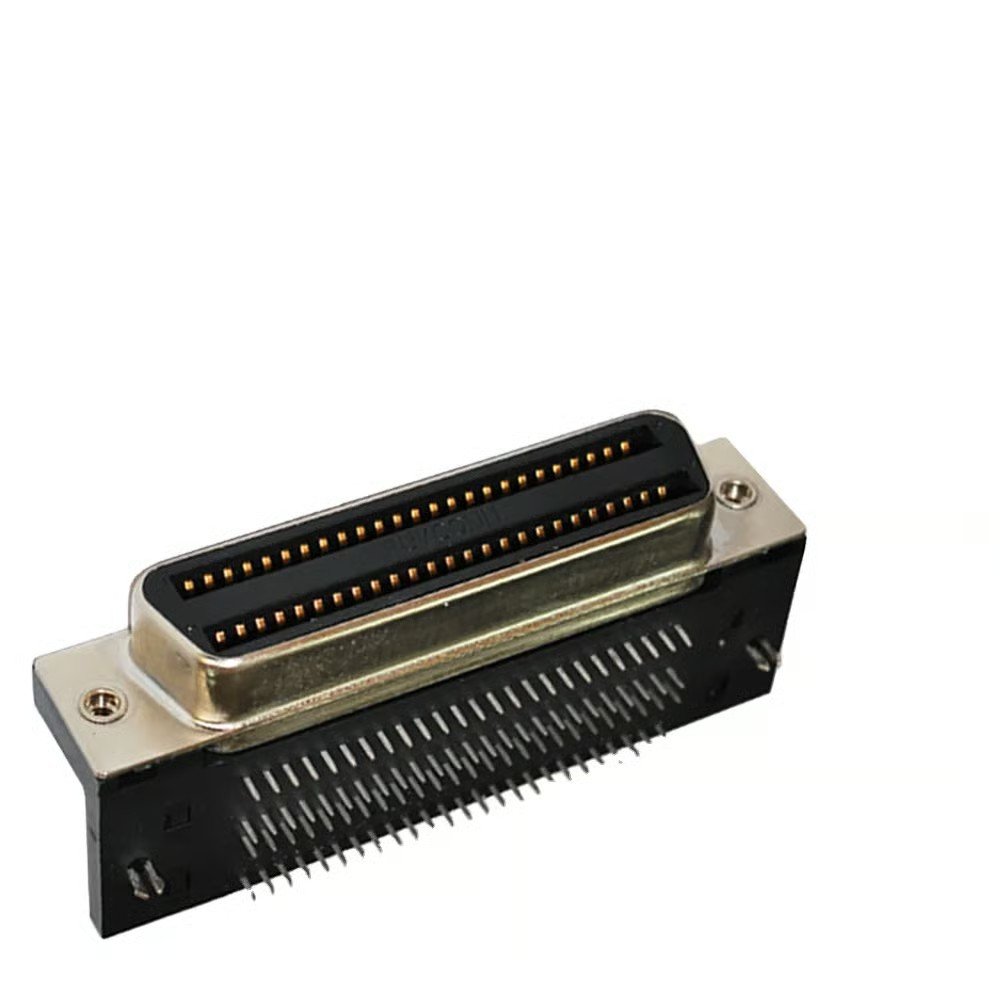

100Pin Centronics Connector

Female right angle PCB board

Engineering Advantages

Our PCB pins connectors are engineered for reliability, precision, and long service life in demanding electronic applications.

Precision Contact

Low insertion force with high retention strength

Low Resistance

Optimized contact geometry minimizes losses

Durable Plating

Gold plating resists corrosion and wear

High Cycles

Rated for 10,000+ mating cycles

Technical Specifications

Electrical Parameters

Current Rating: 0.5A – 20A

Voltage Rating: Up to 600V AC/DC

Contact Resistance: < 20mΩ

Insulation Resistance: > 1000MΩ

Dielectric Strength: 1000V AC/min

Mechanical Parameters

Mating Cycles: 10,000 – 50,000

Operating Temp: -40°C to +105°C

Insertion Force: 50N – 200N

Retention Force: 30N – 150N

Housing Material: UL94 V-0 Plastic

Rapidaccu Excellence

With over 15 years of manufacturing experience, Rapidaccu delivers PCB pins connectors that meet the highest quality standards for electronic assemblies worldwide.

Over 15 Years of Expertise in Pogo Pin and Connector Manufacturing

Certified Quality: ISO 9001, ISO 14001, ISO 45001, and IECQ QC080000

Exceptional Customer Support and Transparent Transactions

Frequently Asked Questions

How do I choose between board-to-board and wire-to-board?

Board-to-board connectors are ideal when stacking PCBs in limited space with fixed connections. Wire-to-board connectors are better for field wiring, external connections, or when you need flexibility in cable routing. Consider your assembly method, space constraints, and whether connections need to be serviceable.

What current rating do I need?

Current rating depends on conductor cross-section, contact plating, and thermal environment. For signal connections, 1-3A is typical. Power connections may require 5-20A ratings. Always derate to 80% of maximum rating for reliability. We can help calculate proper ratings based on your circuit requirements and ambient temperature.

Can connectors handle high-speed signals?

Yes, we offer high-speed connectors designed for controlled impedance (typically 50Ω or 100Ω differential). These feature precision pin spacing, grounding schemes, and optimized contact geometry to maintain signal integrity for USB, HDMI, PCIe, and other high-frequency applications up to several GHz.

What mounting styles are available?

We manufacture through-hole (THT), surface mount (SMT), press-fit, and panel mount connectors. Through-hole provides strongest mechanical strength, SMT enables automated assembly, press-fit eliminates soldering, and panel mount allows external access. Choose based on your PCB assembly process and mechanical requirements.

Do you offer custom pin configurations?

Absolutely. We customize pin count (2-200 pins), pitch spacing, contact arrangement, keying features, housing dimensions, mounting style, and plating options. Our engineering team works with you to design connectors optimized for your specific PCB layout, electrical requirements, and assembly process.

What certifications do your connectors meet?

Our connectors are manufactured under ISO 9001 quality management and can meet UL, CE, and RoHS compliance. Materials comply with UL94 V-0 flammability ratings. We provide certification documentation and can arrange third-party testing for specific industry standards like automotive, medical, or aerospace requirements.

Connect With Us

Need custom PCB pins connectors for your electronic assembly? Our engineering team is ready to design the perfect connection solution for your application.
