Custom Industrial Components

Custom Polyurethane Rollers & PU Coated Wheels

High wear resistance, superior tear strength, and precision-machined metal cores — engineered for the harshest production environments. Rapidaccu combines in-house steel core machining with controlled PU casting for one coordinated sourcing solution.

Abrasion Resistant Precision Machined Fully Custom Heavy-Duty
Request a Quote

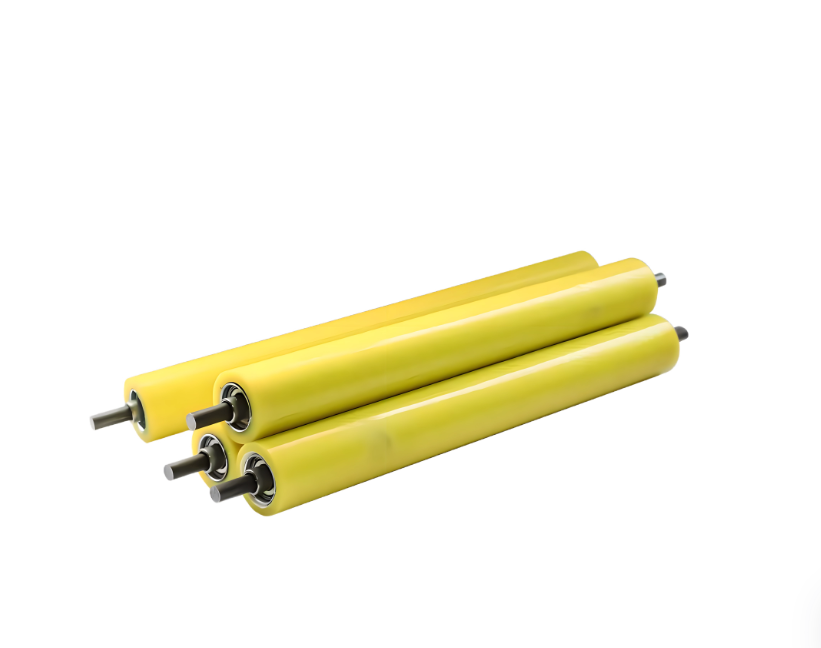

Custom Polyurethane Rollers
50–80mm
Precision Wheel Diameter
40–93mm
Precision Wheel Width
Iron & Steel
Core Materials
6+
Industry Sectors Served
What We Offer

Custom PU Rollers for Heavy-Duty Industrial Applications

Rapidaccu focuses on custom-engineered roller and wheel solutions where performance depends on the full assembly — metal core accuracy, bonding reliability, PU formulation, and final machining quality.

Integrated Core + Covering

We machine iron or steel cores in-house and pair them with high-quality PU casting, eliminating dimensional mismatches between separate suppliers.

Precision Finish Machining

After PU casting, the surface can be precision machined — including grooving and crowned profiles — to match your exact operating requirements.

Wide Size Range

From large industrial rollers used on slitting lines to compact precision PU wheels (50–80 mm diameter, 40–93 mm width) for elevators and AGV platforms.

Products We Manufacture for These Applications:

Steel & aluminum slitting lines Glass manufacturing conveyor systems Heavy material handling equipment AGV drive wheels and guide wheels Elevator wheels and forklift guide wheels Precision small-diameter PU wheels
Performance Comparison

Polyurethane Rollers vs. Standard Rubber Rollers

In heavy-duty industrial use, polyurethane often provides a stronger balance of wear resistance, load-bearing ability, tear strength, and service life.

Performance Factor Polyurethane Rollers Standard Rubber Rollers
Abrasion Resistance Excellent for high-wear environments such as metal, glass, and material handling lines Moderate; may wear faster in abrasive conditions
Tear Resistance High; suitable for impact and edge contact Lower in demanding heavy-load applications
Load Capacity Strong support under compression and continuous duty More prone to deformation over time
Precision Machining Good for grooving, crowning, and tighter finished tolerances Often less suitable for fine post-processing accuracy
Typical Service Life Longer in high-friction or high-load industrial use Shorter when exposed to severe wear or pressure
Manufacturing Capability

End-to-End Manufacturing Scope

By managing both the metal core process and the PU coating supply chain, Rapidaccu reduces the risk of mismatch, communication gaps, and quality disputes between disconnected suppliers.

Metal Core Machining

Iron and steel hubs, shafts, sleeves, and roller bodies machined in-house for better concentricity, fit, and assembly accuracy.

PU Casting Support

Wear-resistant and tear-resistant polyurethane covering for longer life in demanding duty cycles with qualified external PU casting resources.

Finish Machining

OD turning, grooving, crowned profiles, and surface correction after casting so rollers match your tracking and contact requirements.

Size Coverage

Large industrial rollers and precision wheels from 50–80 mm diameter and 40–93 mm width — suitable for both line equipment and compact drive systems.

Capability Area Details Customer Benefit
Metal Core Machining Iron and steel hubs, shafts, sleeves, roller bodies Better concentricity, fit, and assembly accuracy
PU Casting Support Wear-resistant and tear-resistant polyurethane covering Longer life in demanding duty cycles
Finish Machining OD turning, grooving, crowned profiles, surface correction Rollers matched to tracking and contact requirements
Size Coverage Large rollers plus precision wheels from 50–80 mm diameter and 40–93 mm width Suitable for both line equipment and compact drive systems
Product Types

Polyurethane Roller Types We Customize

Different industries need different polyurethane roller structures. Our offering is built around custom configuration rather than fixed catalog parts.

Tension Rollers

For strip processing lines requiring durable surface performance under continuous line tension.

Pinch Rollers

For feeding and traction control — wear-resistant PU surfaces for stable grip.

Conveyor Rollers

For glass and industrial transport systems requiring controlled contact and reliable movement.

Drive Rollers & Wheels

For powered movement requiring consistent traction and dimensional accuracy.

Guide Rollers & Wheels

For controlled path stability in AGV, elevator, and forklift guidance assemblies.

AGV PU Wheels

For traction, load support, and floor protection in automated guided vehicle systems.

Each Type Can Be Customized By:

Outer diameter & face width Core material selection PU hardness specification Groove geometry Crown profile Bore, keyway, bearing seat Shaft interface details Surface finish requirements
Industry Applications

Where Our Polyurethane Rollers Are Used

Polyurethane rollers work best in industrial sectors where abrasion resistance, load handling, and contact stability directly affect uptime and product quality.

Steel & Aluminum Slitting Lines

PU tension rollers and pinch rollers withstand continuous contact, line tension, and abrasive environments, maintaining contact consistency while reducing frequent replacement.

Glass Manufacturing Conveyor Systems

Polyurethane rollers provide stable movement and controlled contact, combining abrasion resistance with surface protection where handling reliability is critical.

Heavy Material Handling Equipment

PU-covered wheels and rollers provide improved wear life and mechanical durability for high-load movement systems exposed to repetitive duty cycles, impact, and industrial debris.

AGV Drive & Guide Wheels

Precision PU wheels maintain travel stability with consistent traction, dimensional accuracy, and predictable running behavior for repeated AGV duty cycles.

Application Common Roller / Wheel Type Key Performance Need
Steel & aluminum slitting lines Tension rollers, pinch rollers Wear resistance, tear resistance, stable traction
Glass conveyor systems Conveyor rollers, transfer rollers Controlled transport, durable contact surface
Heavy material handling Drive rollers, guide rollers, load wheels High load capacity, abrasion resistance
AGV systems Drive wheels, guide wheels Traction, precision, repeatable movement
Key Features

Why Rapidaccu Polyurethane Rollers Perform

Our PU roller service is built around the questions industrial buyers actually ask: How long will they last? Can they handle the load? Will they stay dimensionally stable?

High Wear Resistance

Designed for applications where abrasion is a leading cause of failure — especially in metal processing, glass transport, and heavy-duty conveying systems.

Strong Tear Resistance

Tear failure often starts at edges and grooves. High-quality PU casting improves durability in demanding conditions where lower-grade coverings crack or split early.

High Mechanical Strength

Polyurethane offers stronger compression support than many softer elastomer options, helping maintain function in heavy-use environments under continuous load.

Precision-Machined Metal Cores

In-house capability for iron and steel hub machining ensures dimensional control before the coating process begins — the foundation of roller performance.

Precision-Finished PU Surface

Grooved surfaces and crowned roller profiles machined after casting improve tracking, drainage, contact behaviour, and process compatibility.

Broad Custom Range

From large industrial rollers to precision wheels in the 50–80 mm diameter and 40–93 mm width range — supporting custom dimensions with reliable repeatability.

Customization Options

Build Your Roller Around Real Operating Conditions

A polyurethane roller performs best when built around the actual operating conditions rather than selected as a generic replacement. Rapidaccu provides customization options that help match the roller to load, motion, contact surface, and installation requirements.

Core Material & Structure

Iron or steel cores based on assembly design, shaft arrangement, and load demand — including precision-machined hubs for reliable bonding.

Size & Geometry

OD, face width, bore dimensions, shaft interface details, keyways, mounting features, groove forms, and crowned or straight profiles.

Surface Profile Machining

Grooving for traction, debris management, or functional contact; crowned designs for improved tracking in certain roller systems.

Custom Option Summary

Core Material Iron core, steel core
Diameter Range 50–80 mm (precision) + large
Width Range 40–93 mm + wider by design
Surface Design Smooth, grooved, crowned

Share your drawing, sample, or operating parameters to discuss a custom polyurethane roller solution.

Discuss Your Requirements
Sourcing Advantage

How Rapidaccu Solves Common Sourcing Problems

Buying custom polyurethane rollers often becomes frustrating when the metal core supplier and the PU casting supplier are disconnected. Rapidaccu addresses this in a more controlled way.

01

Reduced Quotation Delays

Many buyers are familiar with the “quote black hole” problem. Rapidaccu is structured to make quoting and coordination more transparent and responsive — technical feedback without the waiting game.

02

Better Core-to-Cover Integration

The quality of PU rollers depends heavily on the fit between the machined core and the cast covering. Managing both processes reduces the risk of dimensional mismatch and avoidable quality disputes.

03

Improved Manufacturability Review

Some drawings look complete but create hidden production issues around bonding surfaces, tolerances, grooves, or installation features. A practical review before production helps reduce revisions and field problems.

04

More Suitable for Industrial Custom Work

Catalog rollers may work for standard replacements, but many industrial systems require custom geometry, load handling, and surface profiles. Rapidaccu is built around these project-specific requirements.

FAQ

Polyurethane Rollers — Frequently Asked Questions

Quick answers to common questions from industrial buyers evaluating custom PU rollers and wheels.

What are polyurethane rollers used for?

Polyurethane rollers are used in many industrial systems that require wear resistance, traction, controlled movement, and load support. Typical applications include steel and aluminum slitting lines, glass conveyors, heavy material handling equipment, AGV drive wheels, guide wheels, elevator wheels, and forklift guide wheels.

Why choose polyurethane rollers over rubber rollers?

Polyurethane rollers are often chosen when higher abrasion resistance, tear strength, and load capacity are needed. In demanding industrial environments, polyurethane usually lasts longer and maintains performance better under continuous duty or higher contact stress than standard rubber.

Can you manufacture both large rollers and small precision PU wheels?

Yes. Rapidaccu supports both large industrial polyurethane rollers and smaller precision PU wheels. We are especially experienced with compact wheel sizes around 50–80 mm diameter and 40–93 mm width, often used in elevator systems, AGVs, and guidance assemblies.

What core materials do you offer?

We provide iron and steel cores with precision turning and milling. The right core structure depends on the assembly design, load, installation method, and final machining requirements. We machine cores in-house to ensure dimensional accuracy before PU casting.

Can the roller surface be machined after PU casting?

Yes. The polyurethane surface can be precision machined after casting. Available finish options include grooving and crowned profiles, which can be important for tracking, traction, or process-specific contact conditions in your equipment.

Do you offer standard off-the-shelf polyurethane rollers?

Our main focus is custom polyurethane rollers and wheels built to customer drawings or application requirements. This is generally the better approach for B2B users who need proper fit, service life, and performance in a specific machine environment.

What information is needed for a quotation?

To quote efficiently, it helps to provide: drawing or sample; outer diameter and width; core material requirement; bore or shaft details; application description; load or working condition information; and any special profile, groove, or crown requirement.

What types of PU surface profiles are available?

We support smooth cylindrical surfaces, grooved surfaces for traction and debris management, and crowned profiles for improved roller tracking. The best profile depends on the application, contact surface type, and system design requirements.
Get Started

Request a Quote for Custom Polyurethane Rollers

Send your drawing, dimensions, quantity, and application details. Whether you are replacing an underperforming roller or developing a new machine, we can review your requirements and provide a practical quotation path.

Contact Information

Factory Address
Rongli Industrial Park, Dalang,
Longhua District, Shenzhen, China

Strong Fit If You Need:

Heavy-duty PU-covered rollers Precision-machined iron or steel cores Custom drive wheels or guide wheels Wear-resistant and tear-resistant PU surfaces Grooved or crowned finish machining Support for large rollers and small precision wheels
Send Your Drawing or RFQ

Request a Quote
