Light-Duty Non-Metallic Conveyor Rollers

Custom PVC Rollers — Quiet, Corrosion-Resistant & Precision-Engineered

Standard and custom PVC conveyor rollers featuring stamped or CNC-machined steel bearing seats, precision ball bearings, and interference-fit assembly — engineered for light logistics, checkout conveyors, gravity racking, and battery production lines.

Very Low Noise Acid & Alkali Resistant Anti-Static Option Steel Bearing Seats

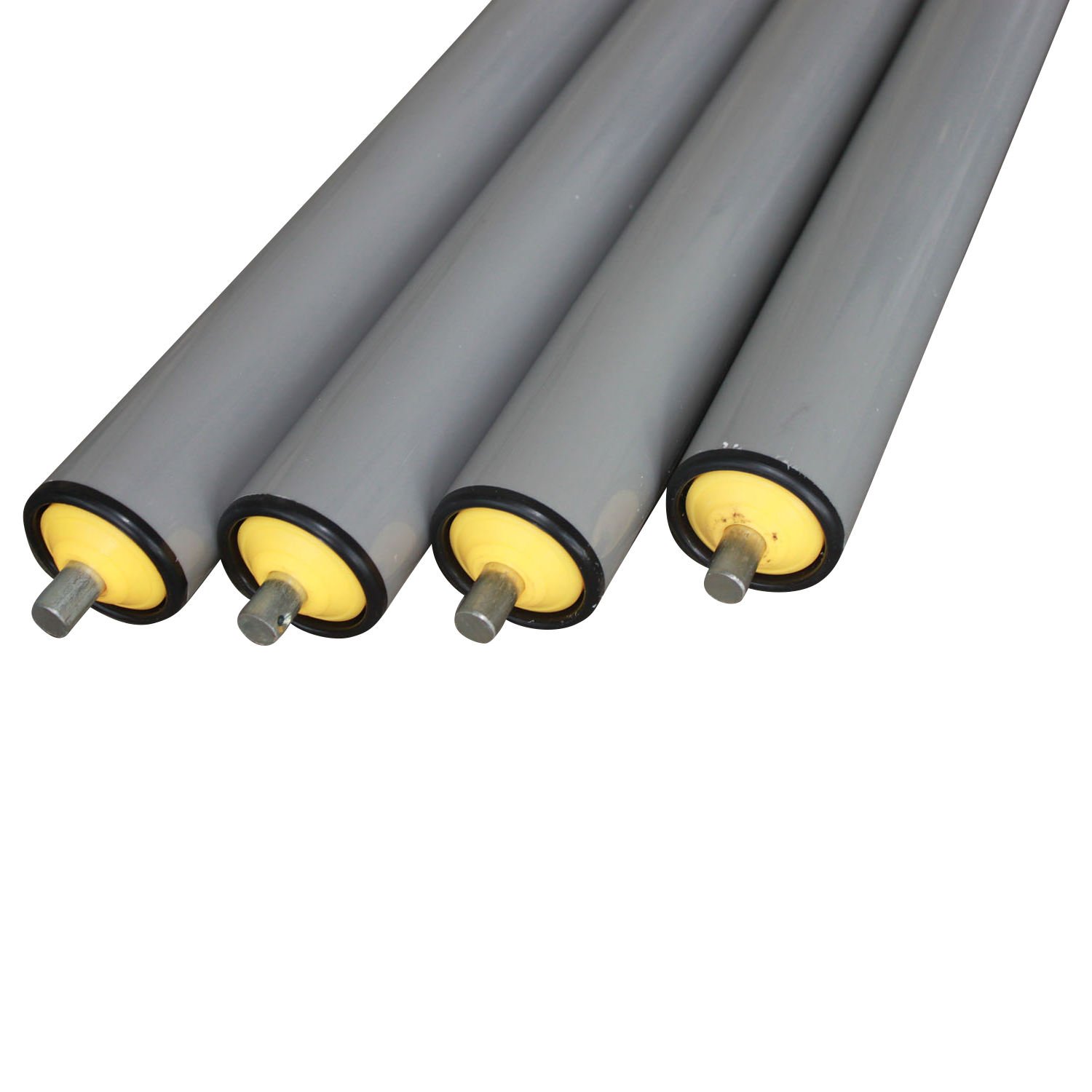

Custom PVC Rollers
50 mm
Standard Diameter
−10°~+80°C
Operating Range
Steel Seat
Bearing Housing
Custom
Sizes & Configs
Why Choose Rapidaccu

The Engineering Difference Behind Our PVC Rollers

Most plastic rollers look similar. The difference is what is inside. Rapidaccu solves the most common weakness in lightweight plastic rollers with a stronger, more precise bearing seat design.

Steel Bearing Seats

Stamped or CNC-machined steel bearing seats in an interference fit — far stronger axial load support than ordinary all-plastic assemblies.

Excellent Concentricity

Precision manufacturing ensures smooth, stable rotation without uneven running, vibration, or inconsistent contact.

Very Low Noise

Precision ball bearings and PVC construction deliver quiet running — important for indoor logistics and retail environments.

Acid & Alkali Resistance

PVC material provides excellent resistance to many acids and alkalis, making it suitable for battery assembly lines and chemical-adjacent environments.

Anti-Static Option

Anti-static PVC available for electrostatic-sensitive handling in electronics assembly and battery production environments.

Standard or Fully Custom

50 mm standard rollers available. Full customization of diameter, length, shaft, end cap, and surface to match any conveyor layout.

Building a new gravity roller line or replacing worn components? Let us match the right PVC roller to your application.

Get a Fast Quote
Applications

PVC Rollers for Light-Duty Conveying Applications

PVC rollers bridge the gap between overengineered metal rollers and unreliable low-grade plastic alternatives — economical enough for light-duty systems, built with the structural details needed for dependable service.

Light Logistics Sorting Centers

In parcel and tote handling areas, smooth transfer and low noise are essential. PVC rollers help reduce operating sound while maintaining stable product flow for light-duty sorting functions.

Gravity Rack & Shelving Systems

For gravity-fed racks, the roller must rotate easily and consistently while remaining cost-efficient at larger quantities. Our PVC rollers support dependable rolling action and economical production.

Supermarket Checkout Conveyors

Retail environments benefit from quieter components and cleaner presentation. PVC conveyor rollers support smooth product movement without the acoustic and visual harshness of heavier metal alternatives.

Battery Assembly Lines

Battery production often requires resistance to acidic or alkaline conditions. Anti-static PVC rollers with robust bearing seat structures offer a strong material advantage in these environments.

Technical Specifications

Typical Specifications & Customization Parameters

Rapidaccu can produce PVC rollers to customer drawings or based on your required use case. Defining core dimensions and operating conditions early speeds up engineering review and quotation.

Parameter Typical Options Engineering Impact Common Buyer Considerations
Roller Diameter 50 mm standard + custom Affects load distribution, compatibility, and flow performance Match existing conveyor frames and product size
Roller Length Custom face lengths Determines product support area and spacing Required clear width and installation layout
Shaft Design Fixed, spring-loaded, custom ends Influences mounting method and replacement ease Existing frame structure and maintenance preference
Bearing Configuration Precision ball bearings + steel seats Affects noise, smoothness, and durability Required service life and operating frequency
Material Property Standard PVC or anti-static PVC Influences ESD control and chemical suitability Battery assembly, electronics-adjacent, sensitive environments
Temperature Range −10°C to +80°C Ensures stable operation in actual conditions Cold rooms, warm indoor lines, seasonal exposure
Material Comparison

PVC Rollers vs. Conventional Alternatives

Material selection should reflect application reality, not just unit price. PVC rollers are an excellent fit for many light-duty systems where corrosion resistance, low noise, and value are priorities.

Roller Type Main Advantages Main Limitations Best-Fit Applications
PVC Rollers Corrosion resistant, lightweight, low noise, cost-effective, anti-static option Not intended for heavy-duty impact or very high-temperature conveying Light logistics, gravity racks, checkout conveyors, battery assembly
Steel Rollers High strength, good for heavier loads, broad industrial familiarity Noisier, heavier, may corrode without protection Heavy-duty lines, pallet handling, higher-load transport
Rubber-Coated Rollers Better grip, product protection, vibration damping Higher cost, coating wear over time, not always needed for gravity flow Driven systems, sensitive product handling, traction applications
All-Plastic Low-Cost Very low initial price, lightweight Lower axial strength, weaker bearing support, reduced long-term stability Basic low-demand applications with minimal performance requirements

For many buyers, the best value lies in choosing PVC rollers with an upgraded structural design rather than selecting the cheapest possible plastic roller.

Customization

Standard & Custom PVC Roller Options

Rapidaccu offers both standard 50 mm PVC rollers and fully customized solutions for OEMs, conveyor builders, and system integrators — matching the application without overpaying for unnecessary complexity.

Standard PVC Rollers

50 mm diameter rollers with standard bearing configuration — ideal for dependable sourcing of common light-duty conveyor dimensions without minimum order complexity.

50 mm diameter Precision bearings Steel bearing seats

Custom PVC Rollers

Fully engineered solutions for non-standard tube lengths, special shaft ends, anti-static materials, or tighter running requirements. We combine plastic machining and injection molding with precision metal processing.

Custom diameter & length Anti-static PVC Custom shaft ends

Customizable Parameters

Roller outer diameter
Roller face length
Shaft diameter and shaft material
Bearing type and bearing seat construction
Anti-static requirement
End cap or mounting style
Surface finish and color
Operating temperature range & chemical resistance
Share Drawing or Sample
Sourcing Guidance

What to Consider When Sourcing PVC Rollers

B2B buyers often face hidden risks when comparing quotes from suppliers using very different internal constructions. These are the key points to evaluate before placing an order.

Bearing Seat Design

Plastic bearing seats may reduce cost but often limit axial strength and long-term stability. Steel seats provide significantly stronger bearing retention.

Concentricity Control

Poor concentricity creates noise, uneven movement, and premature wear. Precision manufacturing is essential for stable rotation and consistent product flow.

Bearing Quality

Precision bearings improve smoothness, reduce friction, and extend service life. This matters in systems operating many hours per day over extended periods.

Environmental Compatibility

Confirm temperature range, chemical exposure resistance, and anti-static needs before ordering. A mismatch here causes early failure regardless of roller quality.

Mounting Compatibility

Shaft type and end design must match your conveyor frame for easy installation. Mismatched mounting details create delays and extra modification costs.

Production Consistency

Dimensional repeatability matters when buying in batches for line integration or replacement inventory. Inconsistent parts create fit problems and slow installation.

FAQ

Frequently Asked Questions — PVC Rollers

Common questions from conveyor builders, procurement teams, and OEM engineers sourcing PVC rollers for light-duty applications.

What are PVC rollers used for?

PVC rollers are used in light-duty conveyor and material handling systems where corrosion resistance, low noise, and cost efficiency are priorities. Common applications include light logistics sorting centers, gravity racking and shelving systems, supermarket checkout conveyors, and battery assembly lines.

What makes Rapidaccu PVC rollers different from standard plastic rollers?

Our PVC rollers use stamped or CNC-machined steel bearing seats assembled with precision ball bearings in an interference fit, rather than ordinary all-plastic bearing housings. This provides much higher axial load capacity, better concentricity, very low noise, and longer service life compared to basic plastic roller assemblies.

Do you offer 50 mm PVC rollers as a standard product?

Yes. The 50 mm diameter PVC roller is our standard configuration and is widely used in gravity racks, checkout conveyors, and light logistics lines. We also support custom diameters and lengths for OEM and system integrator requirements that do not match the standard size.

Are anti-static PVC rollers available?

Yes. We offer anti-static PVC roller options for applications where electrostatic control is important. This is particularly relevant for battery assembly lines, electronics-adjacent environments, and sensitive handling systems where static buildup could cause damage or safety concerns.

What temperature range do your PVC rollers support?

Our PVC rollers operate reliably from −10°C to +80°C. This covers most indoor logistics, retail, and light industrial environments including cold room staging areas and warm assembly lines. If your application falls outside this range, we can discuss alternative material options.

Can I get PVC rollers with custom shaft ends or mounting styles?

Yes. Shaft design, shaft diameter, shaft material, end cap style, and mounting method can all be customized to match your conveyor frame. We support fixed shaft, spring-loaded shaft, and custom shaft end configurations to ensure easy installation and correct fit in your system.

What information do I need to provide for a quotation?

To speed up quotation, please share roller diameter, roller length or face length, shaft size and shaft end style, load and application details, operating temperature, chemical exposure or anti-static requirements, and estimated order quantity. Drawings or existing samples are also welcome for review.

Are PVC rollers suitable for battery production line use?

Yes. Battery assembly lines often require resistance to acidic or alkaline conditions and may also need anti-static properties. Our PVC rollers with anti-static material selection and robust steel bearing seat construction are well suited for these environments, combining chemical resistance with structural performance.
Get Started

Request a Quote for PVC Rollers

Looking for PVC rollers for a new conveyor build, replacement program, or custom OEM project? Share your specification and we can recommend the right solution quickly.

Contact Us Directly

Factory Address
Rongli Industrial Park, Dalang,
Longhua District, Shenzhen, China

Include in Your Enquiry:

Roller diameter and face length Shaft size and shaft end style Load and application details Operating temperature Chemical exposure / anti-static needs Estimated order quantity
Send Your Specification Now

Request a Quote
