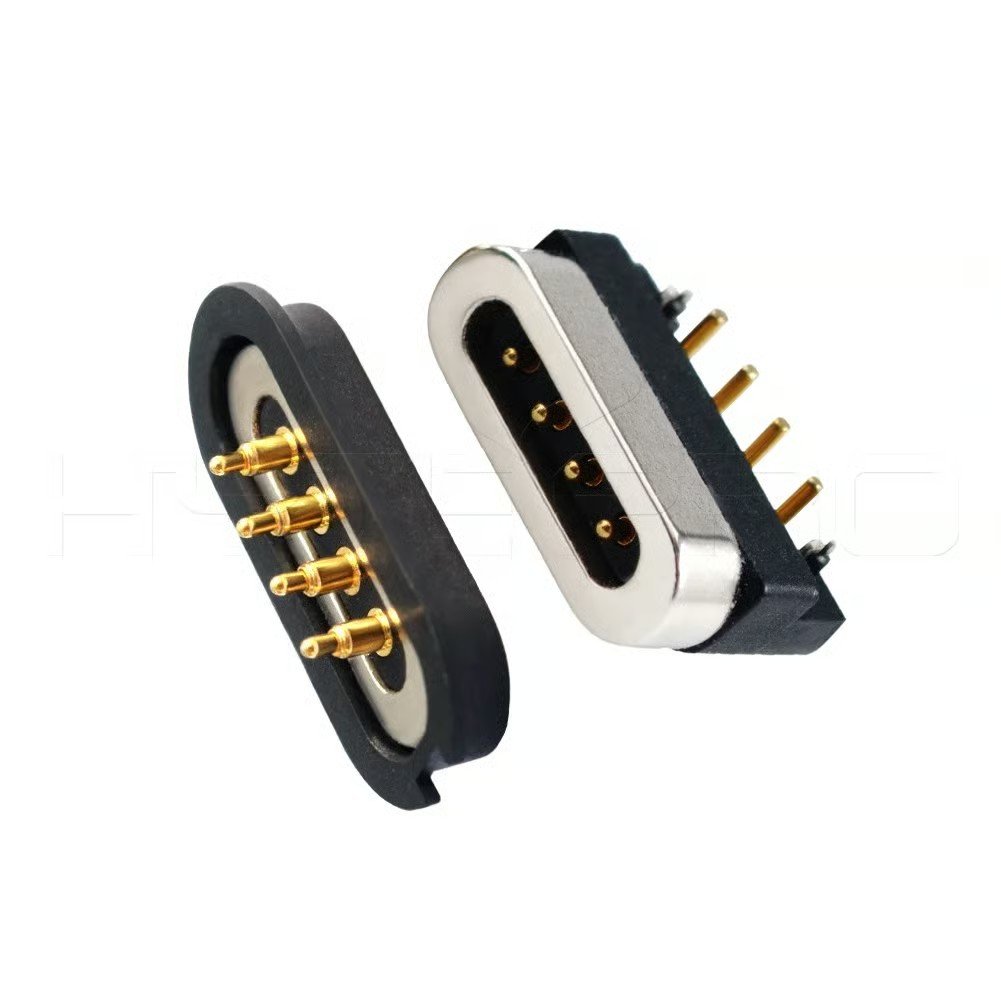

Waterproof Magnetic Connector

IP67 allows temporary immersion up to 1 meter for 30 minutes, suitable for splash resistance and brief submersion. IP68 provides protection for continuous immersion beyond 1 meter depth and longer durations, ideal for permanent underwater installations or marine environments.

Our connectors use neodymium magnets with holding forces ranging from 300g to 3kg depending on size and configuration. The magnetic strength is optimized to provide secure connection while allowing easy manual disconnection, and prevents accidental separation during normal use.

Standard designs feature integrated gaskets that last the connector’s lifetime (10,000+ cycles). For applications requiring gasket replacement, we offer serviceable designs with replaceable O-rings and seal components. Custom designs can incorporate user-replaceable sealing elements.

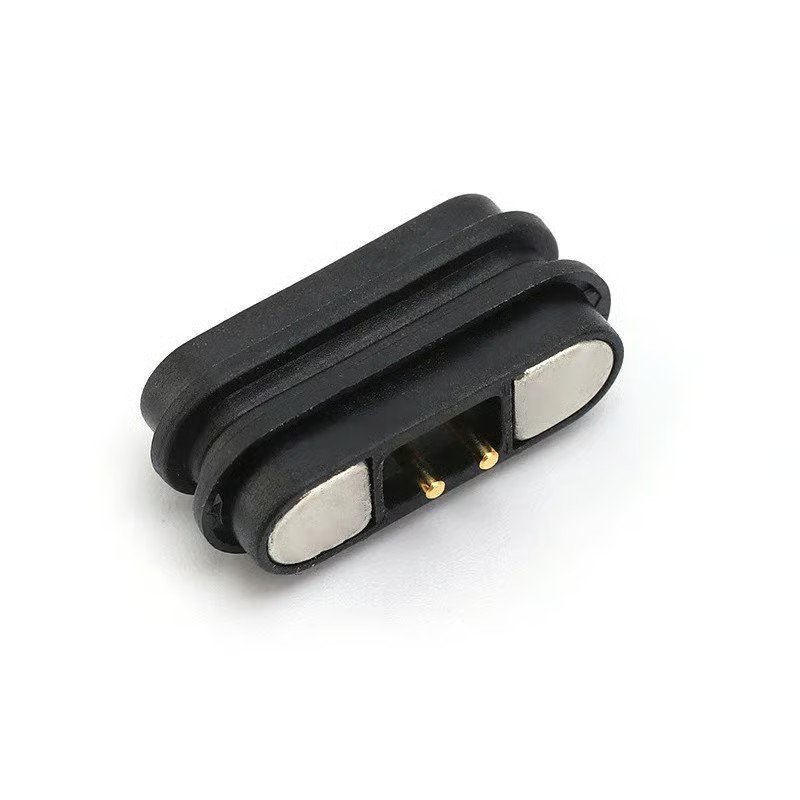

Waterproof magnetic connectors are available in ratings from 1A to 20A depending on pin count, contact area, and thermal design. Higher current models feature larger contact surfaces and enhanced heat dissipation to maintain safe operating temperatures during power transmission.

Yes, we offer marine-grade versions with corrosion-resistant materials including stainless steel housings, gold-plated contacts, and specialized rubber compounds that resist saltwater degradation. These variants meet stringent marine application requirements for boats, underwater equipment, and coastal installations.

Absolutely. We customize pin count (2-16 pins), contact arrangement, housing dimensions, cable length, IP rating level, current capacity, and mounting styles. Our engineering team works with you to design connectors perfectly matched to your specific waterproof application requirements.
